Specialist for Audio-Amplifiers

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

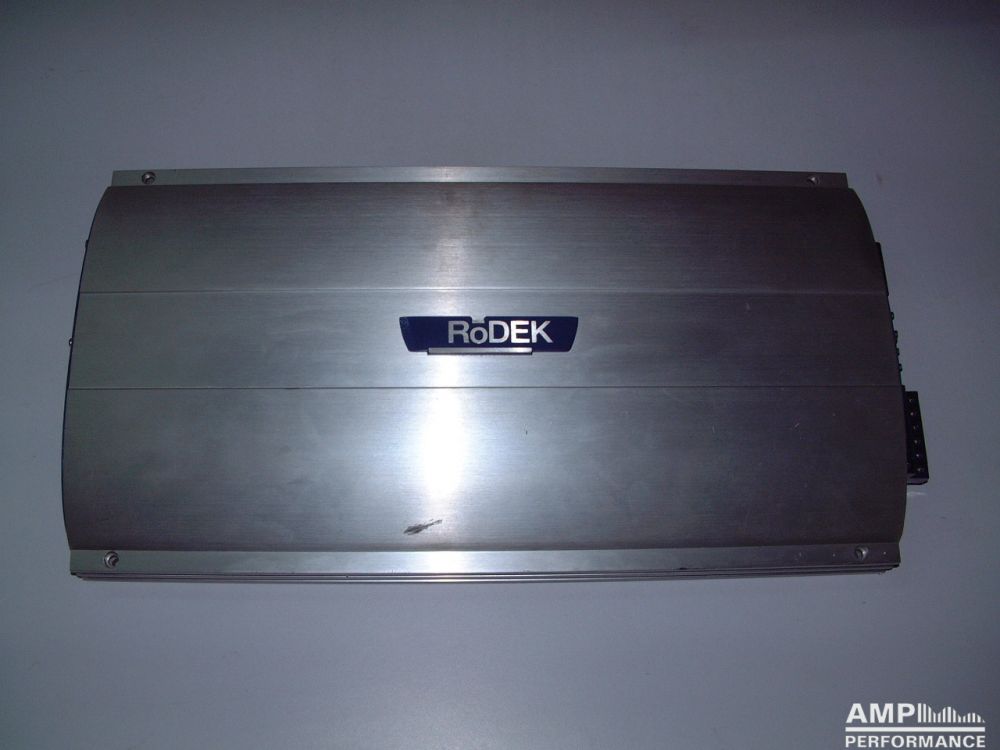

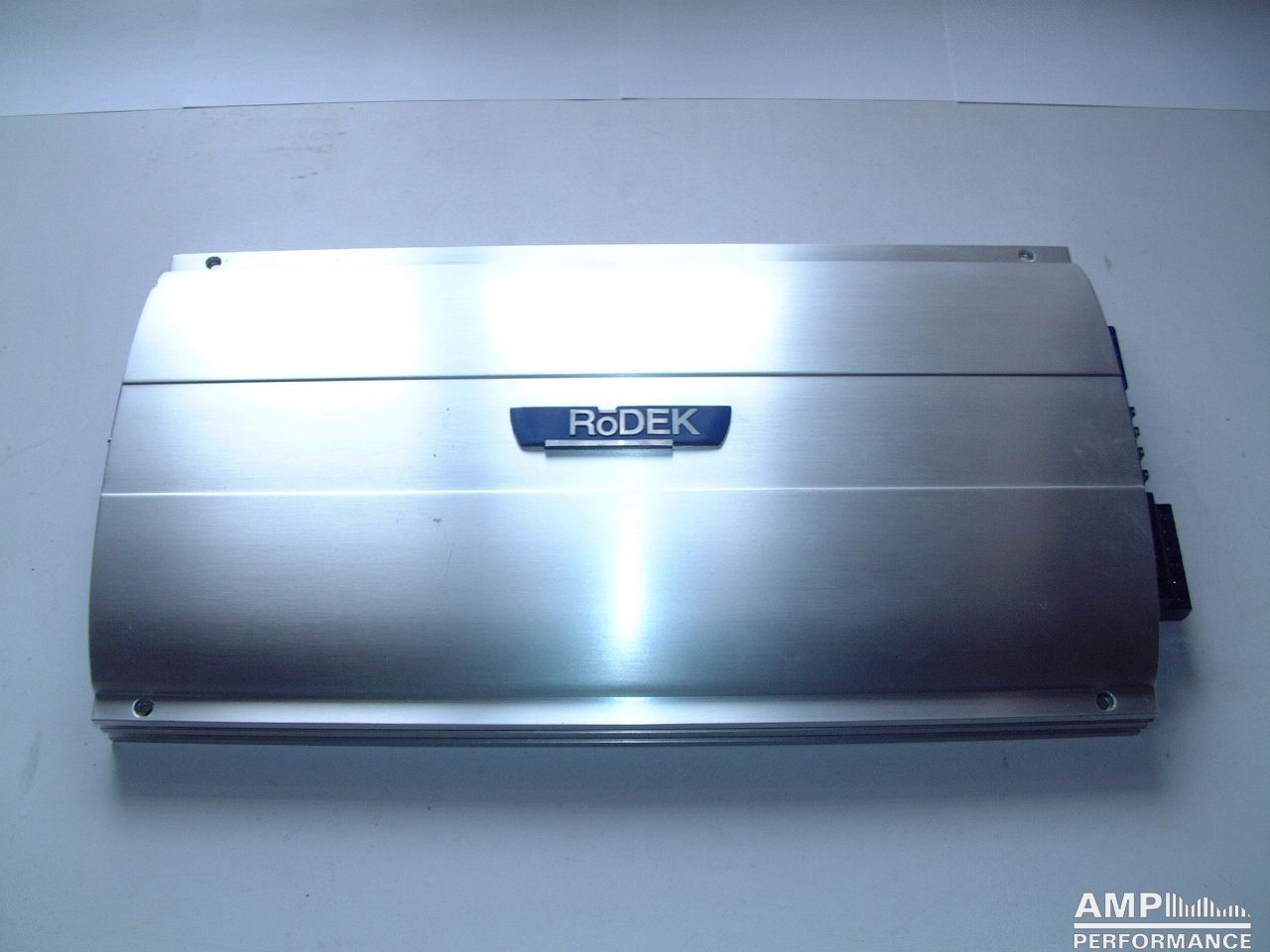

Rodek R680A

1 × 119 watts, channel 1 at 4 Ohm
2 × 113 watts, channel 1 + 2 at 4 Ohm
4 × 105 watts, channel 1 up to 4 at 4 Ohm
6 × 96 watts, channel 1 up to 6 at 4 Ohm
Current consumption 69,5A
efficiency 61,4%

4 × 88 watts, channel 1 up to 4 at 4 Ohm +
1 × 303 Watts channel 5 + 6 bridged at 4 Ohm
Current consumption 86A
efficiency 56,5%

3 × 272 watts, channel 1 up to 6 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 118A
efficiency 51,7%

816 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Rodek R680A

1 × 120 watts, channel 1 at 4 Ohm
2 × 114 watts, channel 1 + 2 at 4 Ohm
4 × 105 watts, channel 1 up to 4 at 4 Ohm
6 × 98 watts, channel 1 up to 6 at 4 Ohm with 13,4V supply voltage
Current consumption 69,7A
efficiency 62,8%

1 × 369 watts, channel 1 + 2 bridged at 4 Ohm
2 × 317 watts, channel 1 up to 4 bridged at 4 Ohm
3 × 276 watts, channel 1 up to 6 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 118A
efficiency 52,7%

828 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Rodek R680A

1 × 118 watts, channel 1 at 4 Ohm
2 × 112 watts, channel 1 + 2 at 4 Ohm
4 × 107 watts, channel 1 up to 4 at 4 Ohm
6 × 101 watts, channel 1 up to 6 at 4 Ohm
Current consumption 70,1A
efficiency 64%

1 × 361 watts, channel 1 + 2 bridged at 4 Ohm
2 × 324 watts, channel 1 up to 4 bridged at 4 Ohm
3 × 289 watts, channel 1 up to 6 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 117A
efficiency 55,3%

867 watts total power
