Specialist for Audio-Amplifiers

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

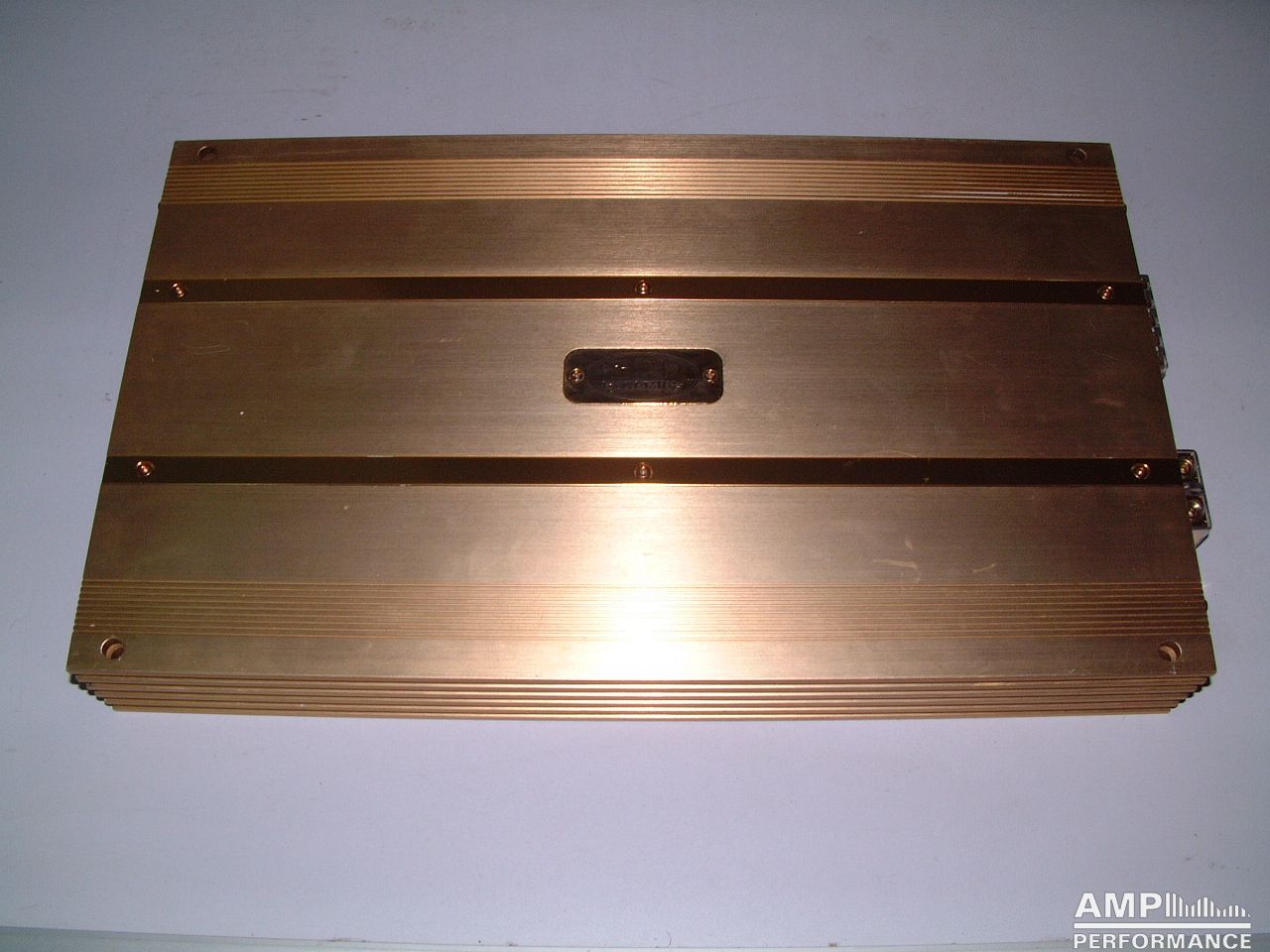

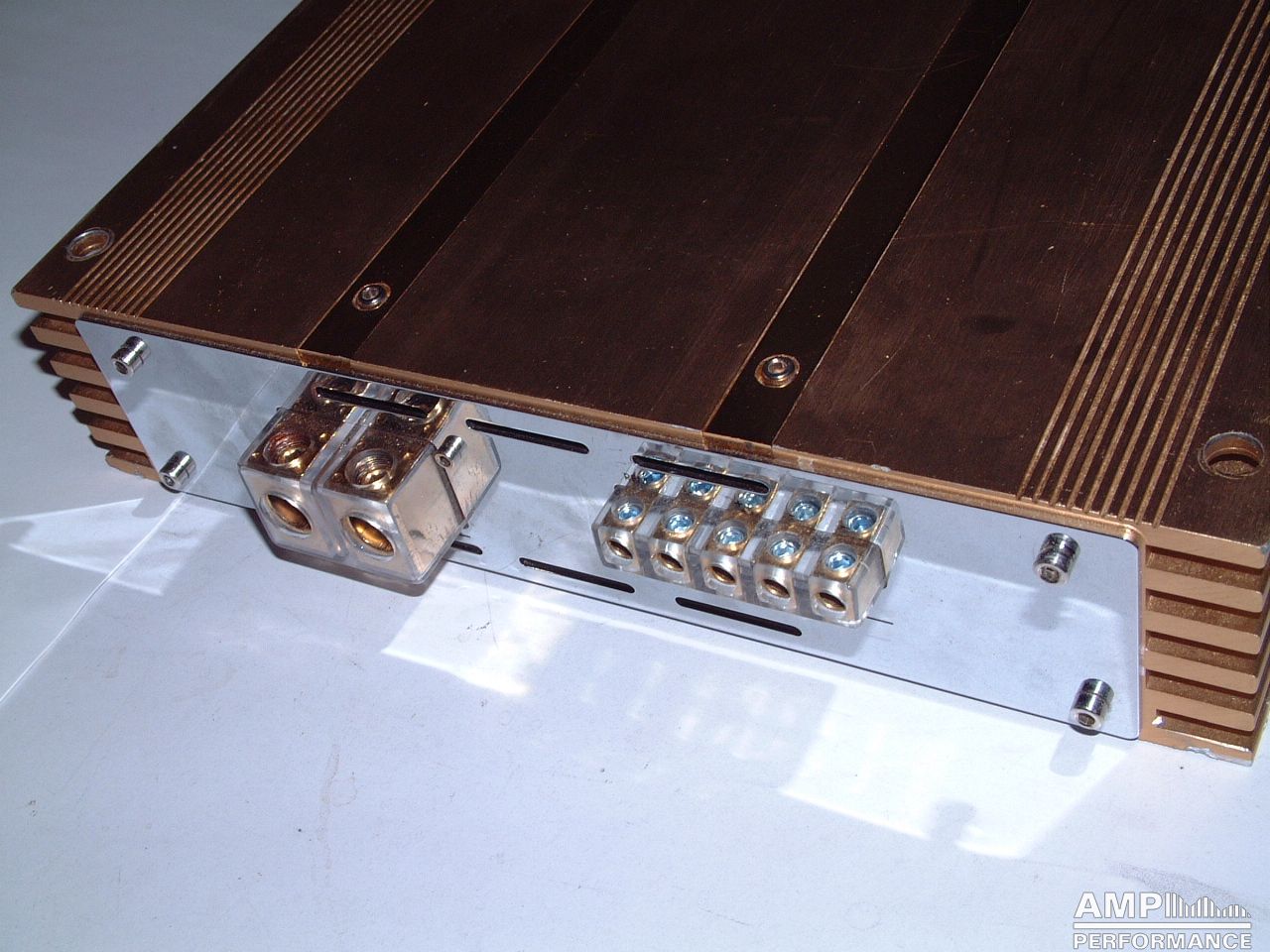

SPL Dynamics EXT-3000D

1 × 1156 watts, channel 1 at 4 Ohm with 13,2V supply voltage
Current consumption 98,9A
efficiency 88,6%

1 × 1922 watts, channel 1 at 2 Ohm with 13V supply voltage
Current consumption 180A
efficiency 82,1%

gemessen up to zur Clipping-Grenze with 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

SPL Dynamics EXT-3000D

1 × 1156 watts, channel 1 at 4 Ohm with 13,5V supply voltage
Current consumption 98A
efficiency 87,4%

1 × 1922 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 179A
efficiency 80,1%

1 × 2529 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 251A
efficiency 75,8%

gemessen up to zur Clipping-Grenze with 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

SPL Dynamics EXT-3000D

1 × 1156 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 98A
efficiency 87,4%

1 × 1953 watts, channel 1 at 2 Ohm with 13,3V supply voltage
Current consumption 180A
efficiency 81,6%

1 × 2529 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 251A
efficiency 75,8%

1 × 2809 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 298A
efficiency 71,4%

2809 watts total power

gemessen up to zur Clipping-Grenze with 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

SPL Dynamics EXT-3000D

1 × 1156 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 99A
efficiency 87,1%

1 × 2048 watts, channel 1 at 2 Ohm with 13,3V supply voltage
Current consumption 180A
efficiency 85,6%

1 × 2707 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 260A
efficiency 78,3%

1 × 2916 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 305A
efficiency 72,4%

2916 watts total power

gemessen up to zur Clipping-Grenze with 100 Hz because of fixed preset low-pass filter
