provided by infinity aus dem Klangfuzzi-Forum

provided by cwolfk from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

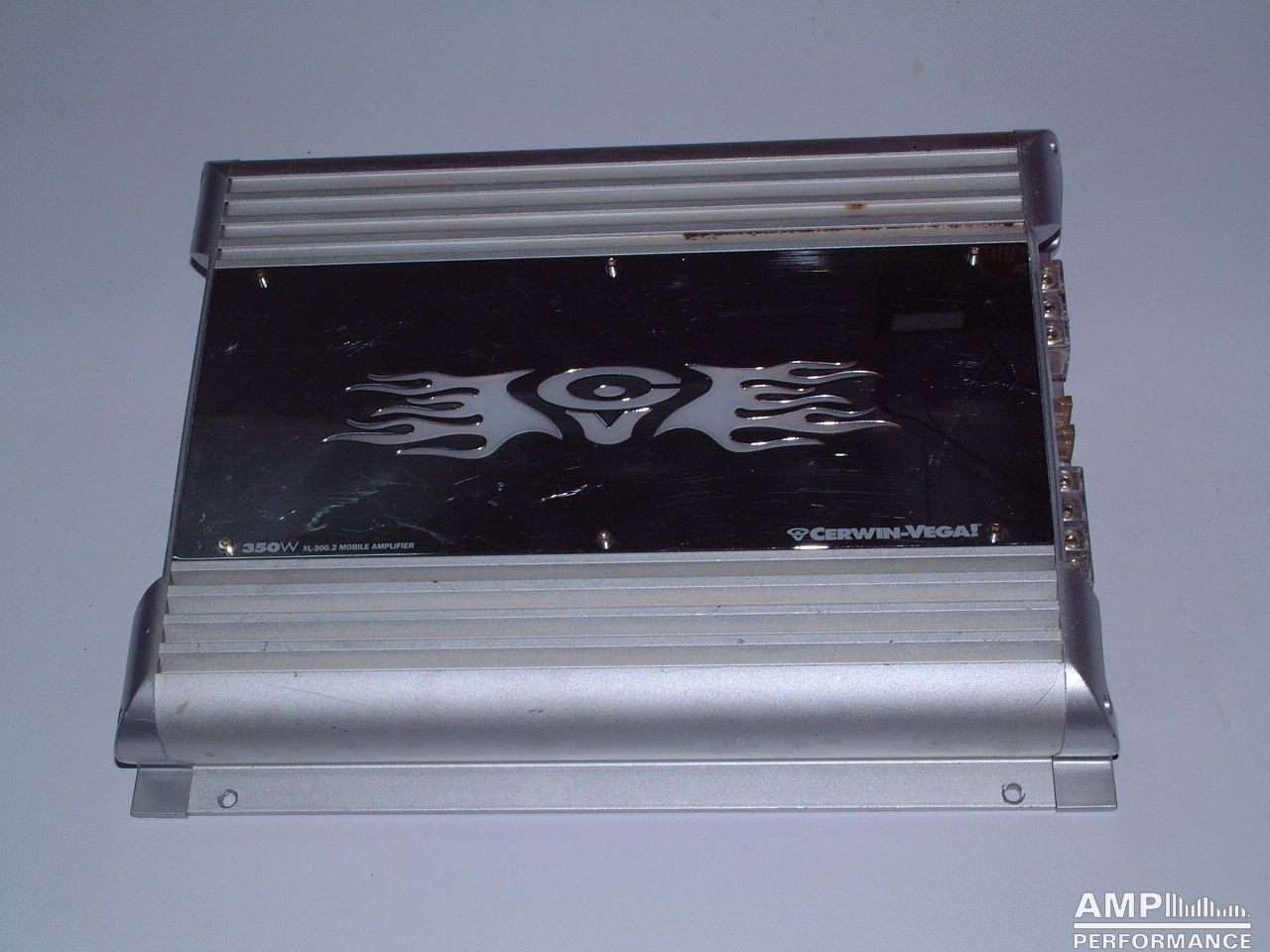

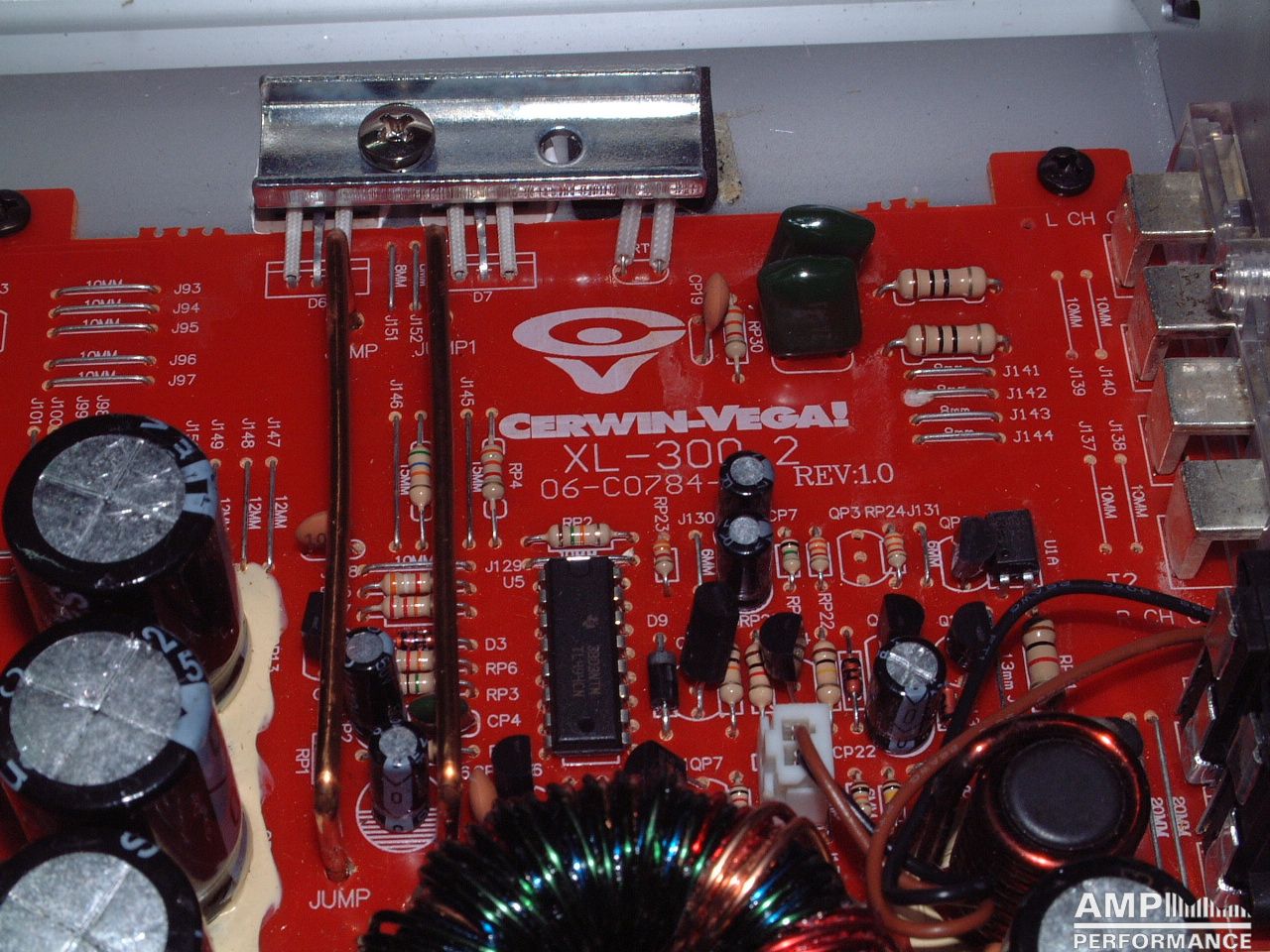

Cerwin Vega XL-300.2

1 × 125 watts, channel 1 at 4 Ohm
2 × 111 watts, channel 1 + 2 at 4 Ohm
Current consumption 25,7A
efficiency 64,2%

1 × 342 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 45A
efficiency 56,3%

1 × 415 watts, channel 1 + 2 bridged at 2 Ohm
Current consumption 68A
efficiency 45,2%

415 watts total power
