provided by Liquidity from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

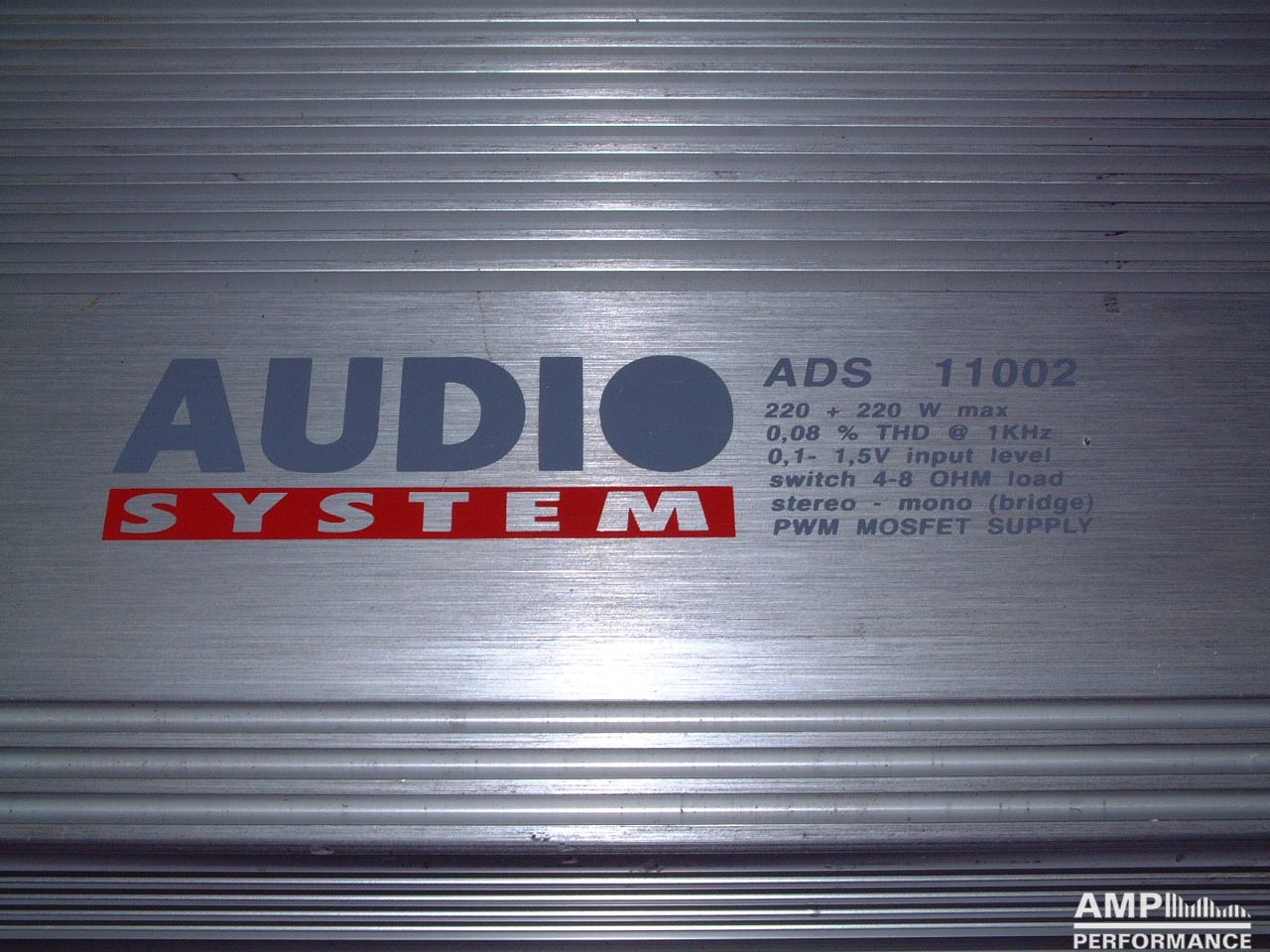

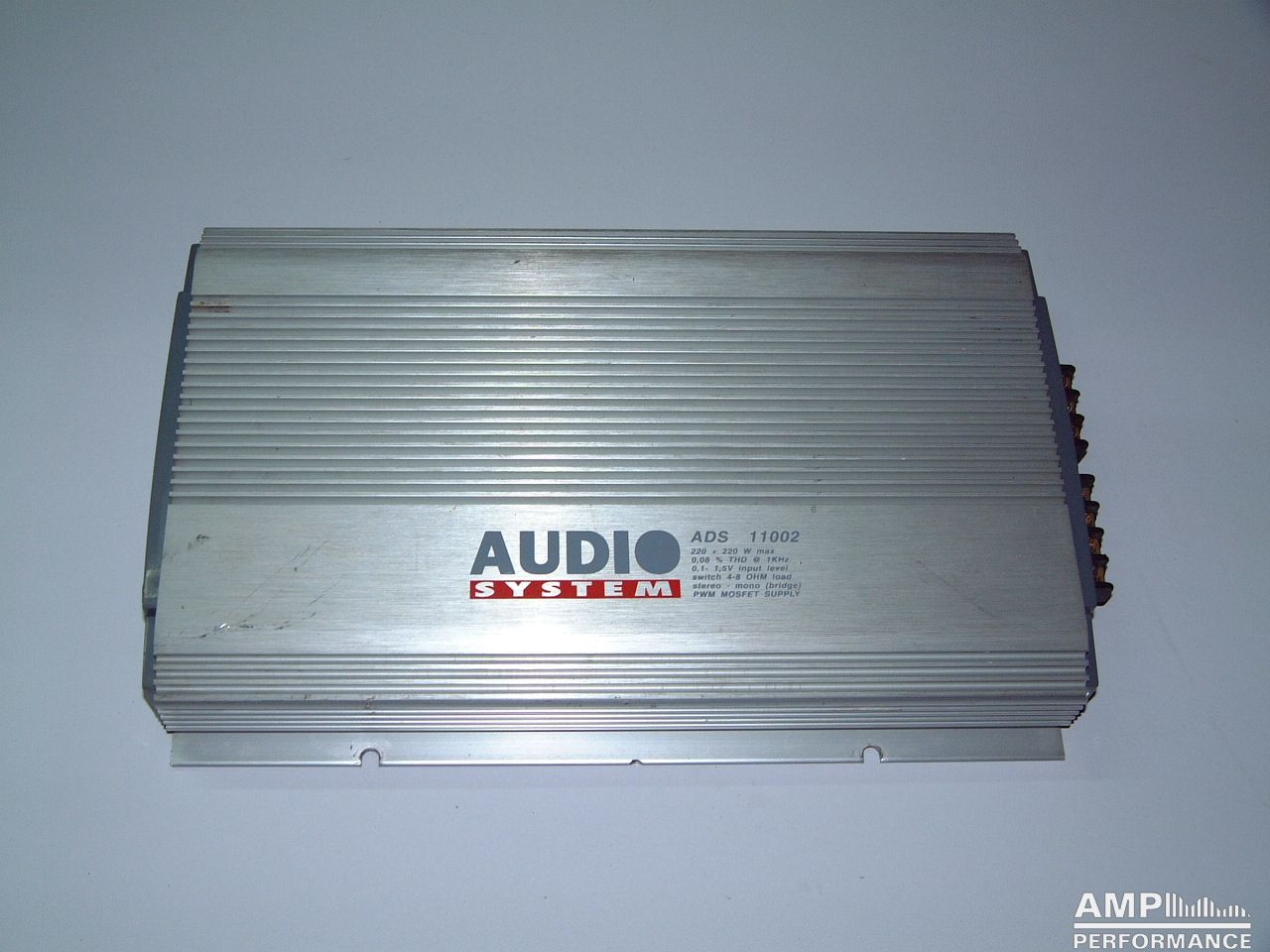

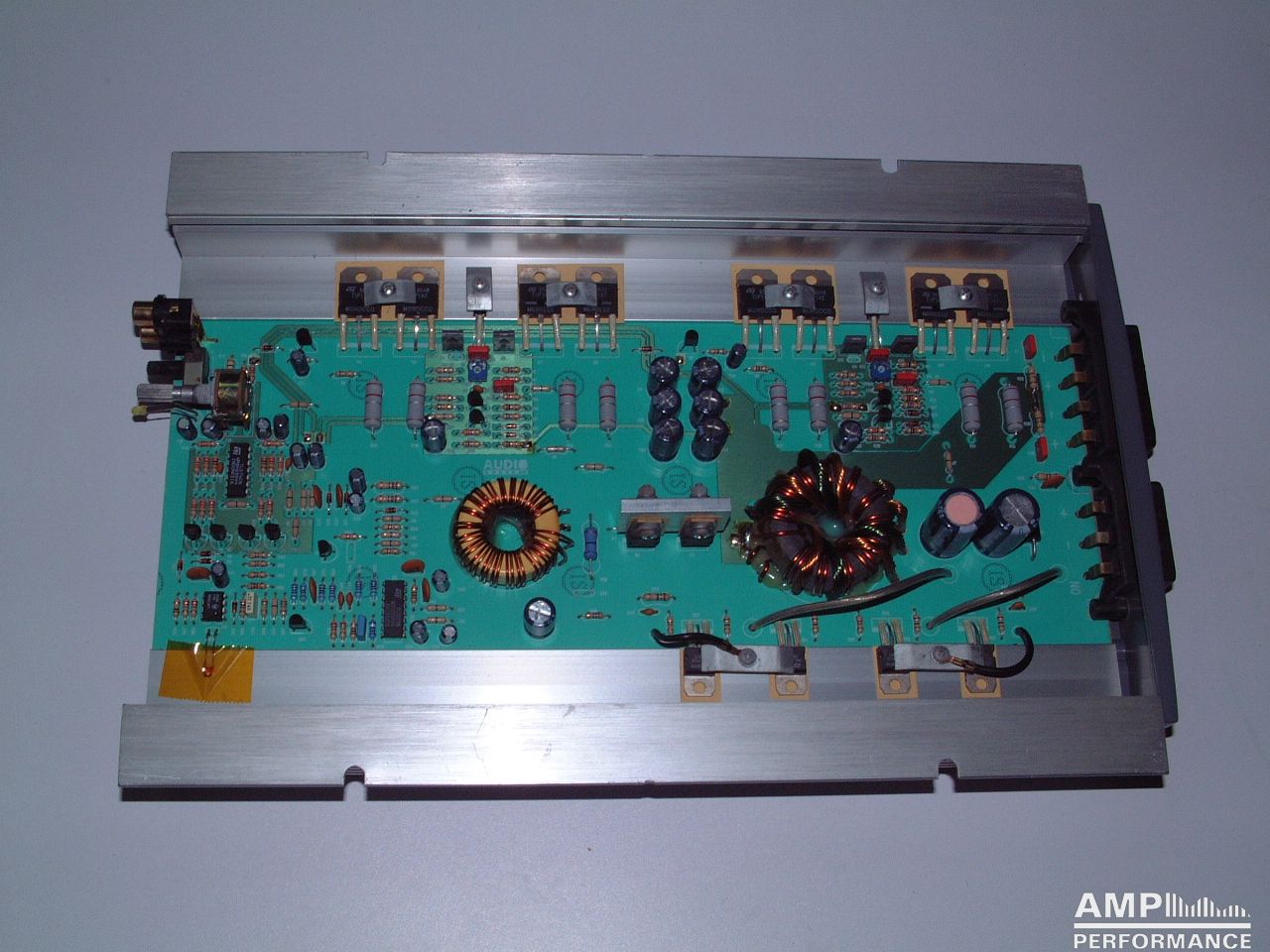

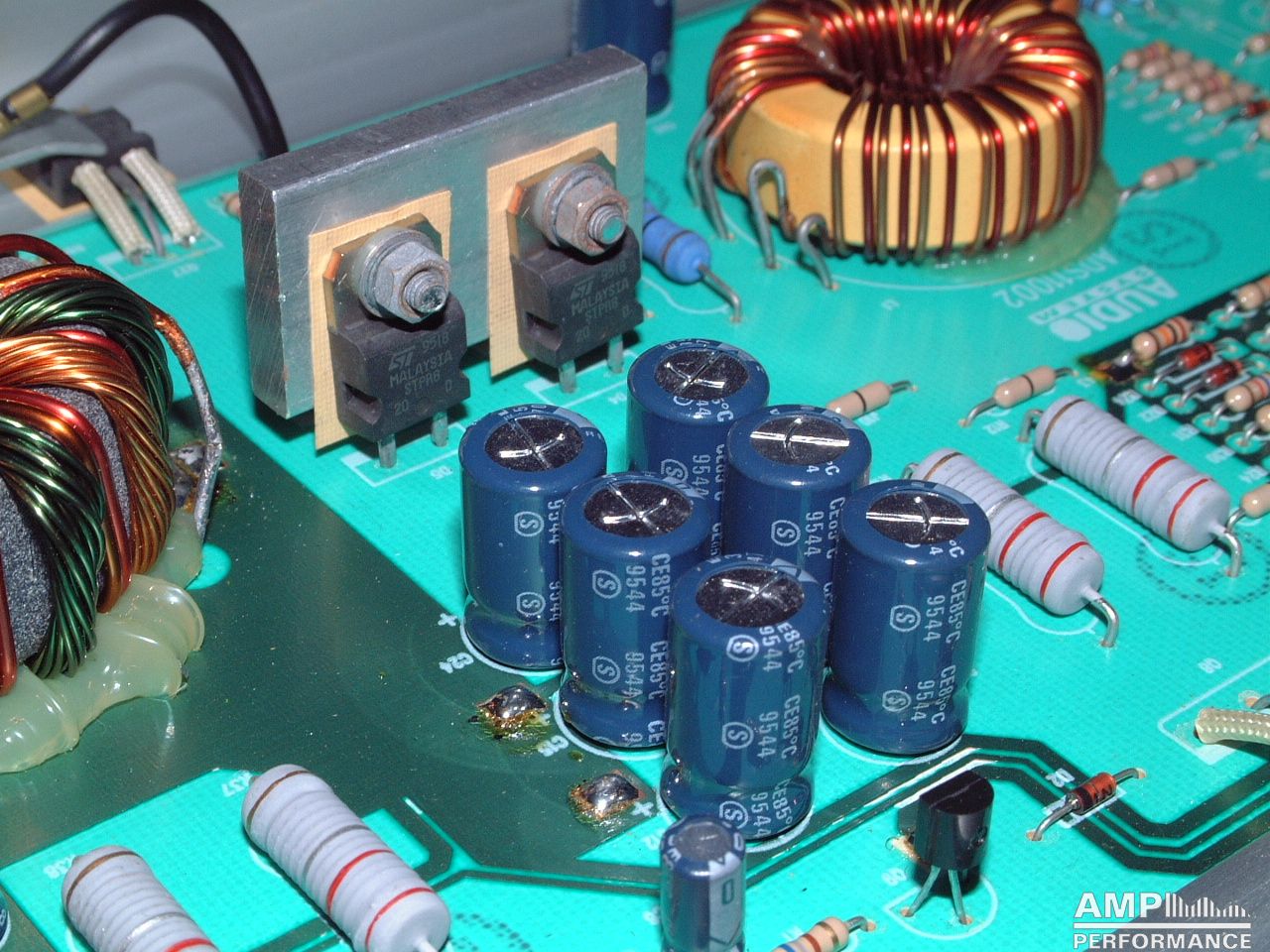

Audio System ADS 11002

High-Current-Mode:

1 × 59 watts, channel 1 at 4 Ohm
2 × 59 watts, channel 1 + 2 at 4 Ohm
Current consumption 14,5A
efficiency 59,8%

1 × 222 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 30,5A
efficiency 54%

1 × 338 watts, channel 1 + 2 bridged at 2 Ohm
Current consumption 60,3A
efficiency 41,5%

338 watts total power

High-Voltage-Mode:

1 × 130 watts, channel 1 at 4 Ohm
2 × 130 watts, channel 1 + 2 at 4 Ohm
Current consumption 29,3A
efficiency 65,8%

1 × 449 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 58,3A
efficiency 57,1%

449 watts total power
