provided by ben2oo2 from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

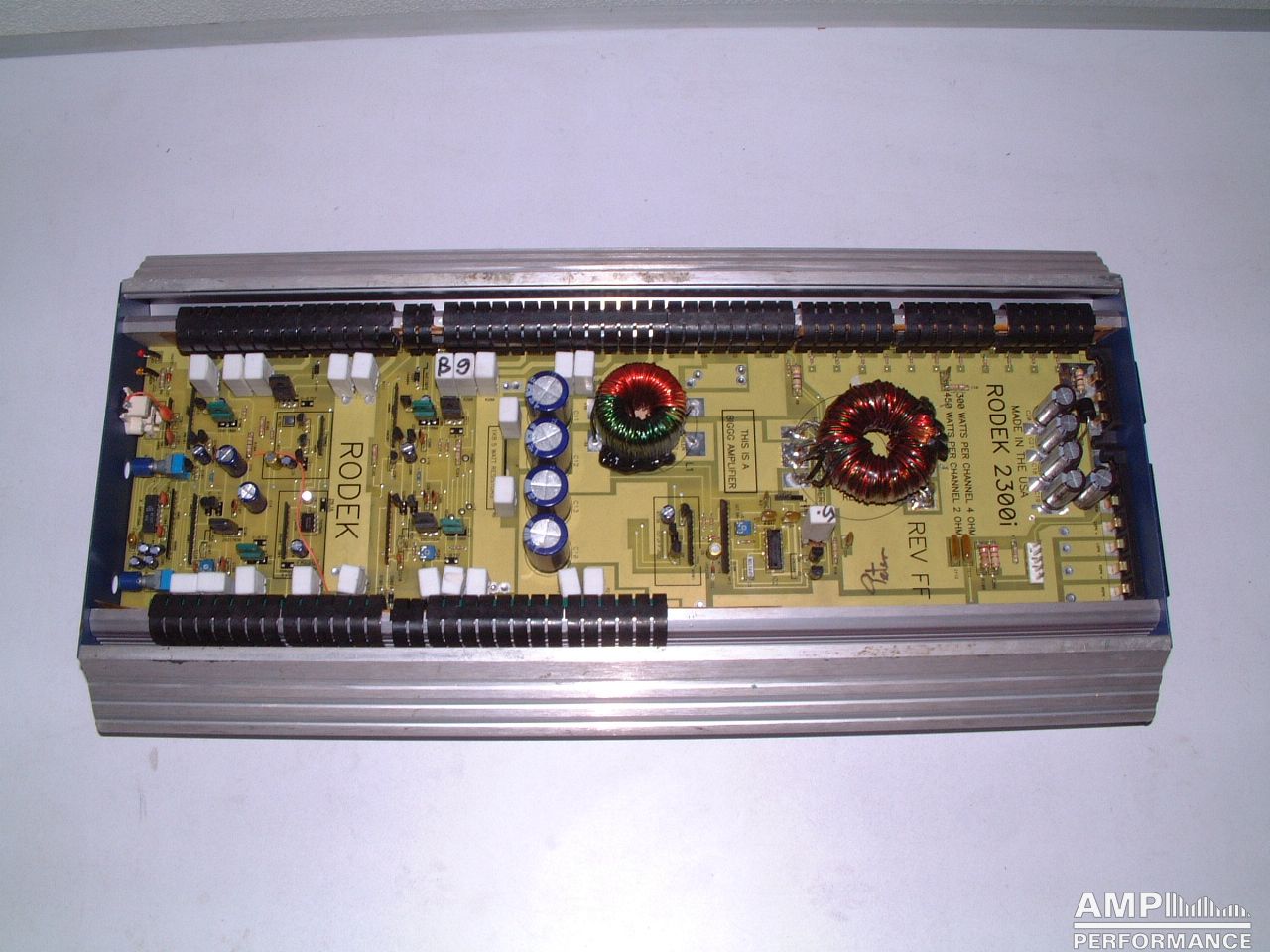

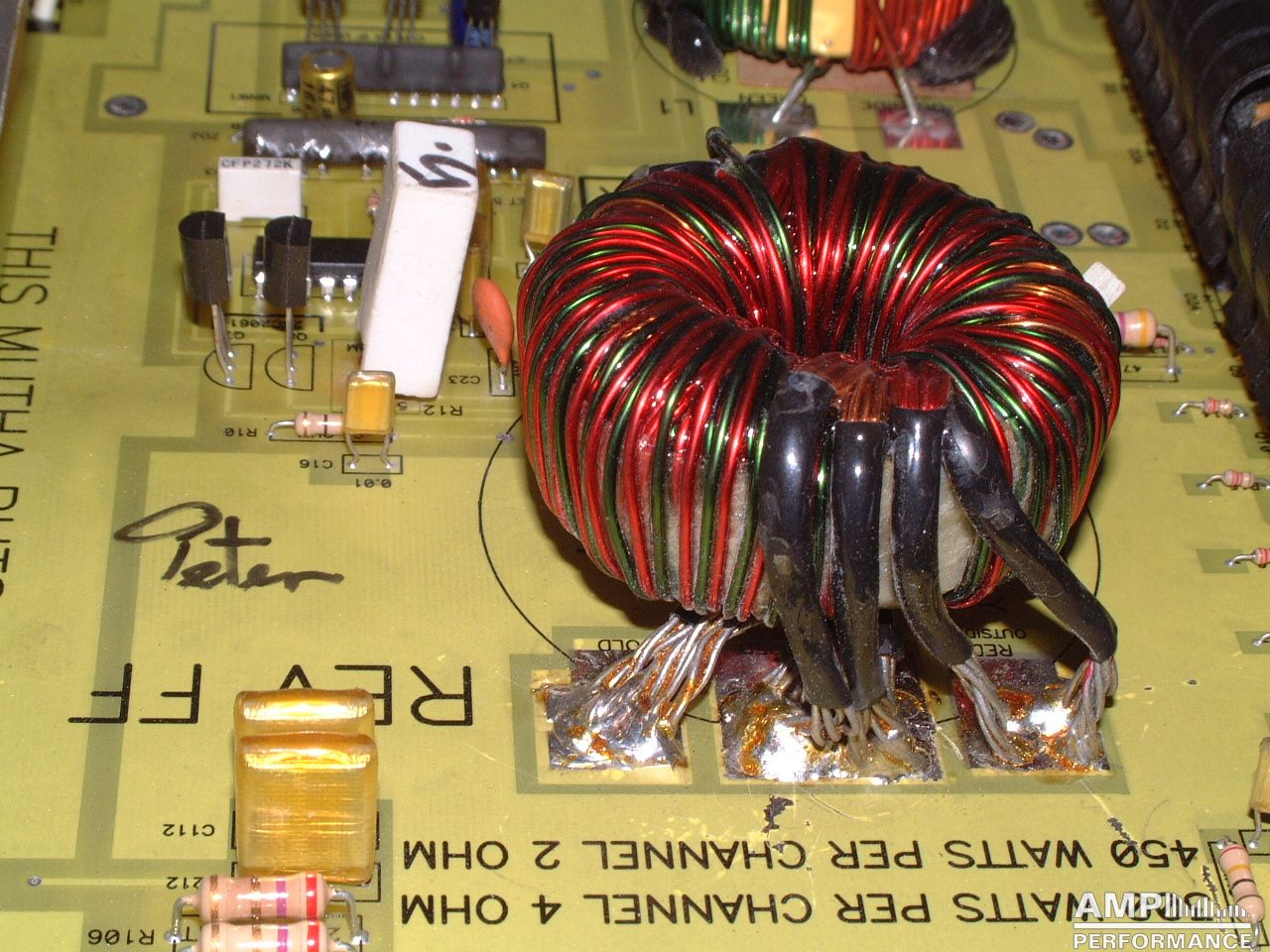

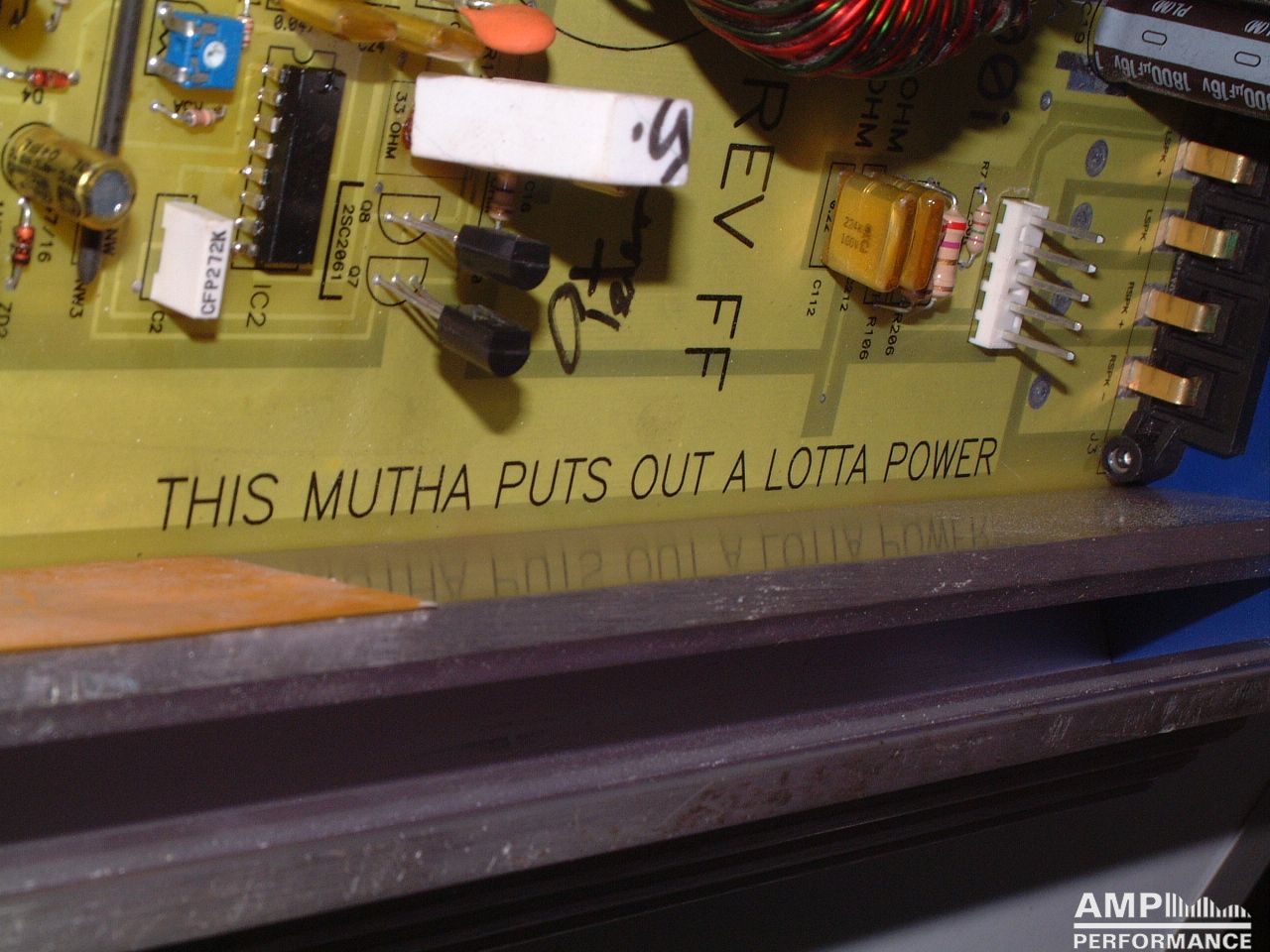

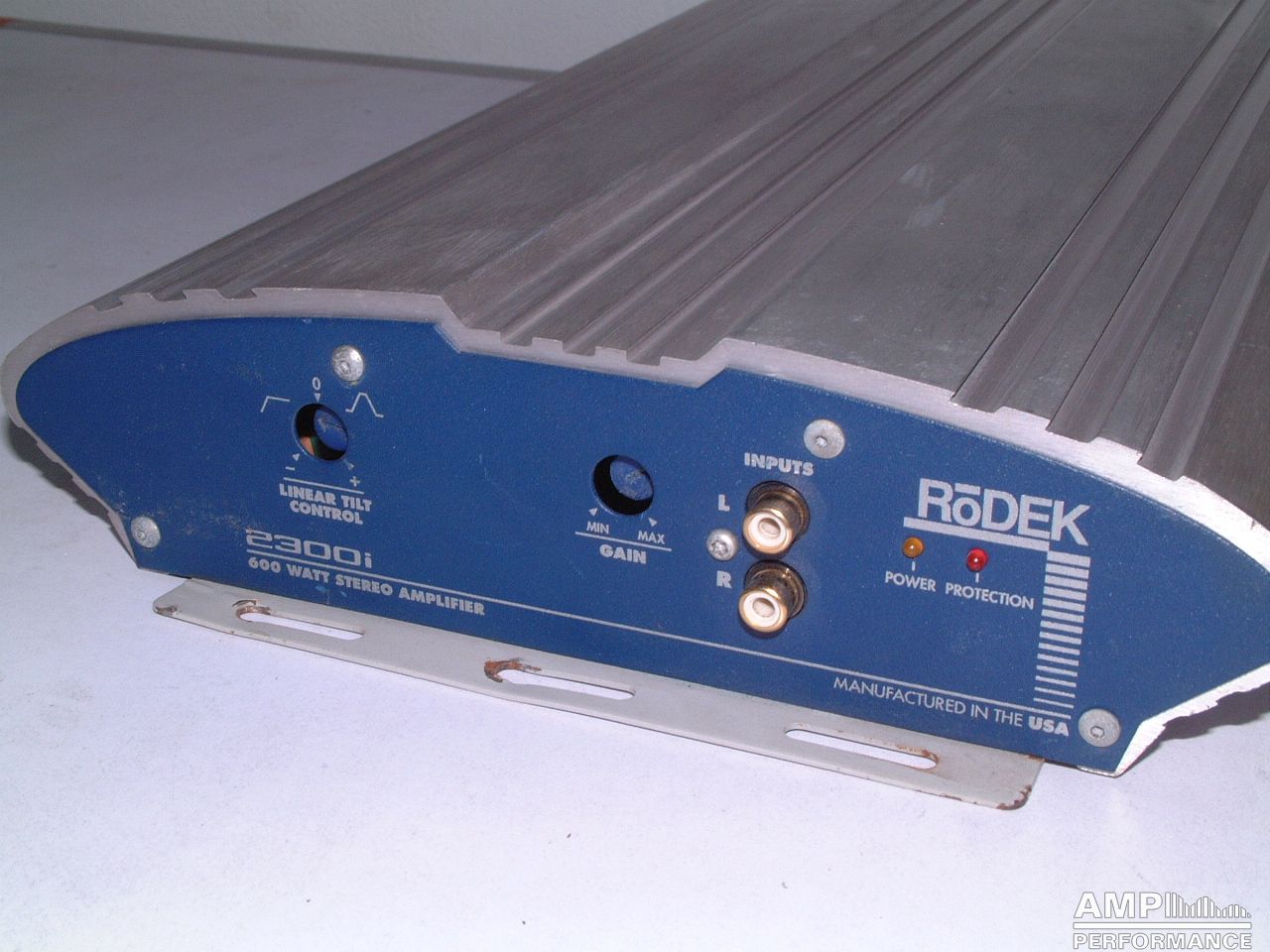

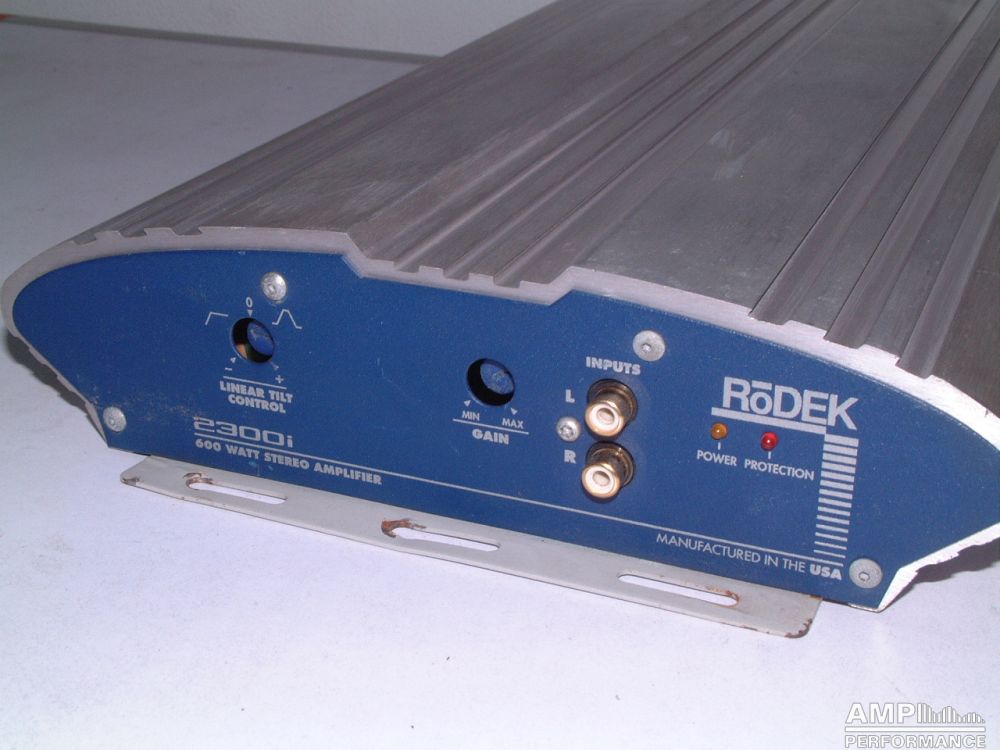

Rodek 2300i REV FF

1 × 369 watts, channel 1 at 4 Ohm
2 × 369 watts, channel 1 + 2 at 4 Ohm

1 × 1082 watts, channel 1 + 2 bridged at 4 Ohm

1082 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

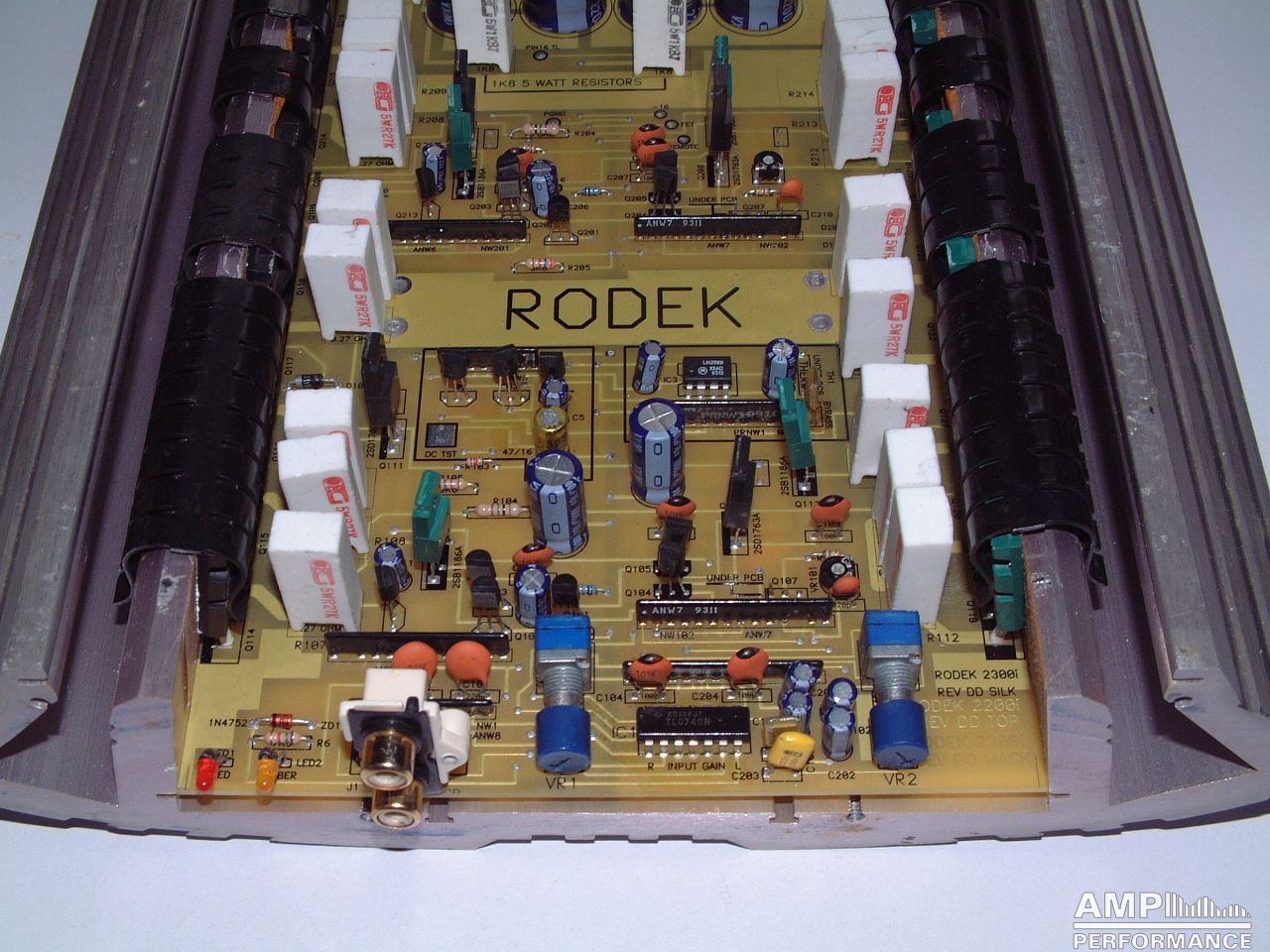

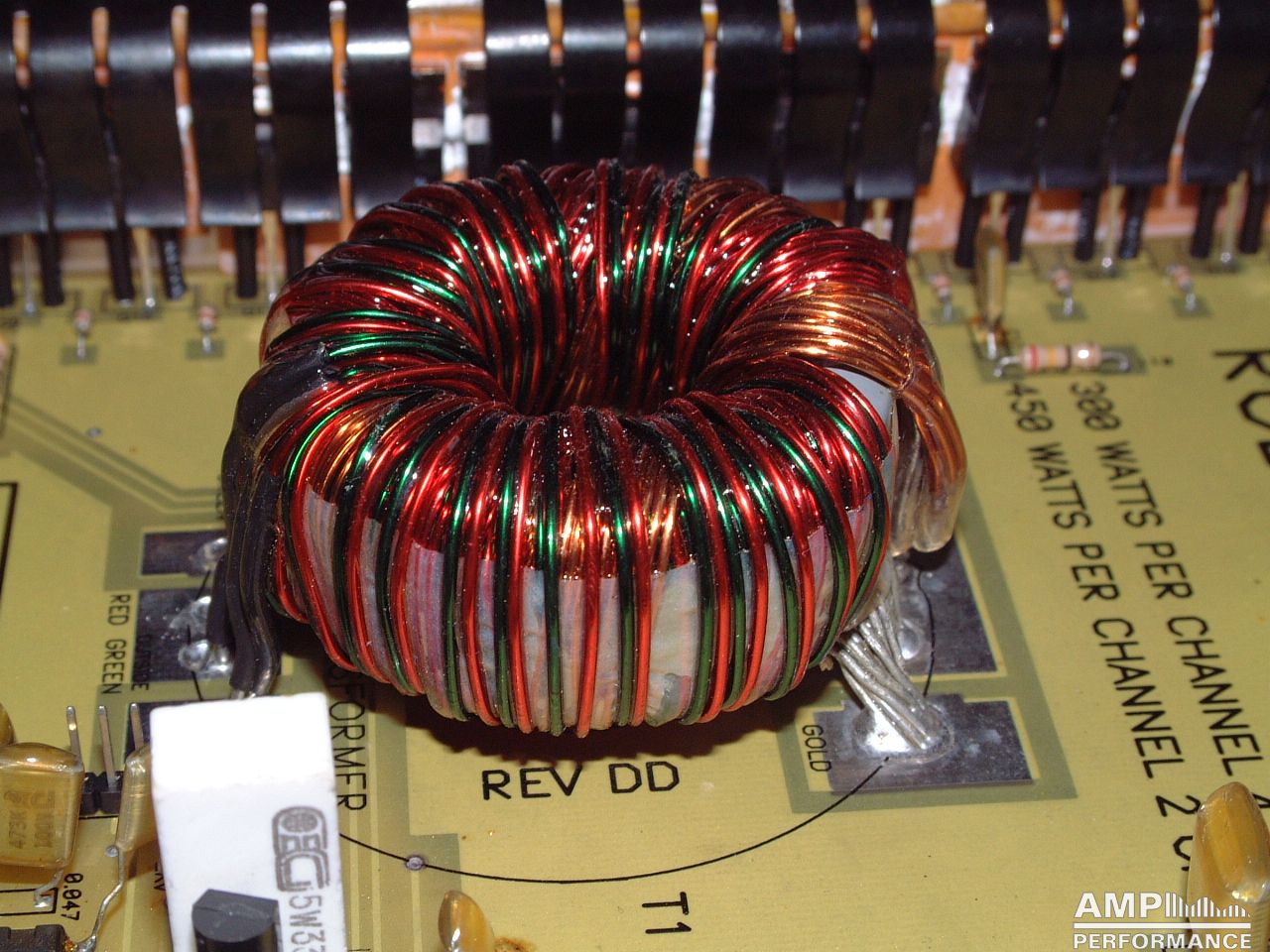

Rodek 2300i REV DD

1 × 361 watts, channel 1 at 4 Ohm
2 × 361 watts, channel 1 + 2 at 4 Ohm with 13,3V supply voltage
Current consumption 99,5A
efficiency 54,2%

1 × 1024 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 157A
efficiency 49%

1024 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

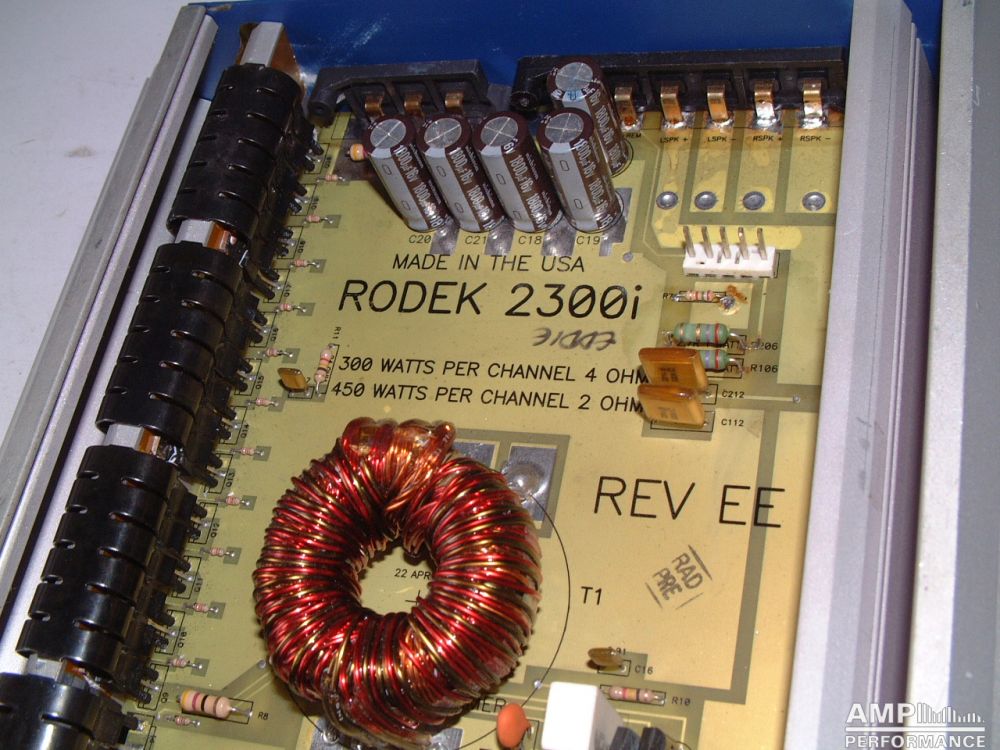

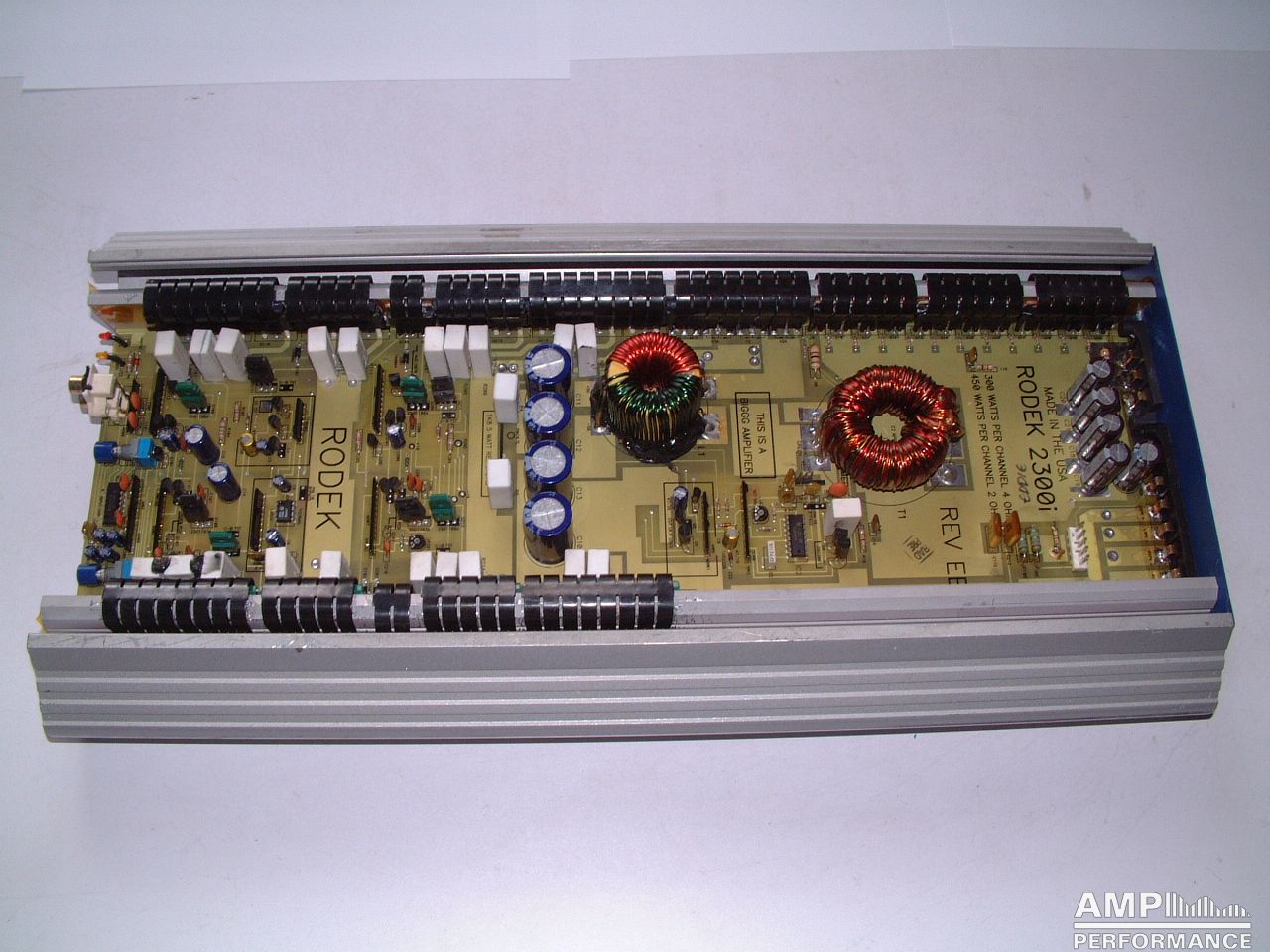

Rodek 2300i REV EE

1 × 361 watts, channel 1 at 4 Ohm
2 × 361 watts, channel 1 + 2 at 4 Ohm with 13,3V supply voltage
Current consumption 93,1A
efficiency 57,9%

1 × 1050 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 157,7A
efficiency 50%

1050 watts total power
