Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

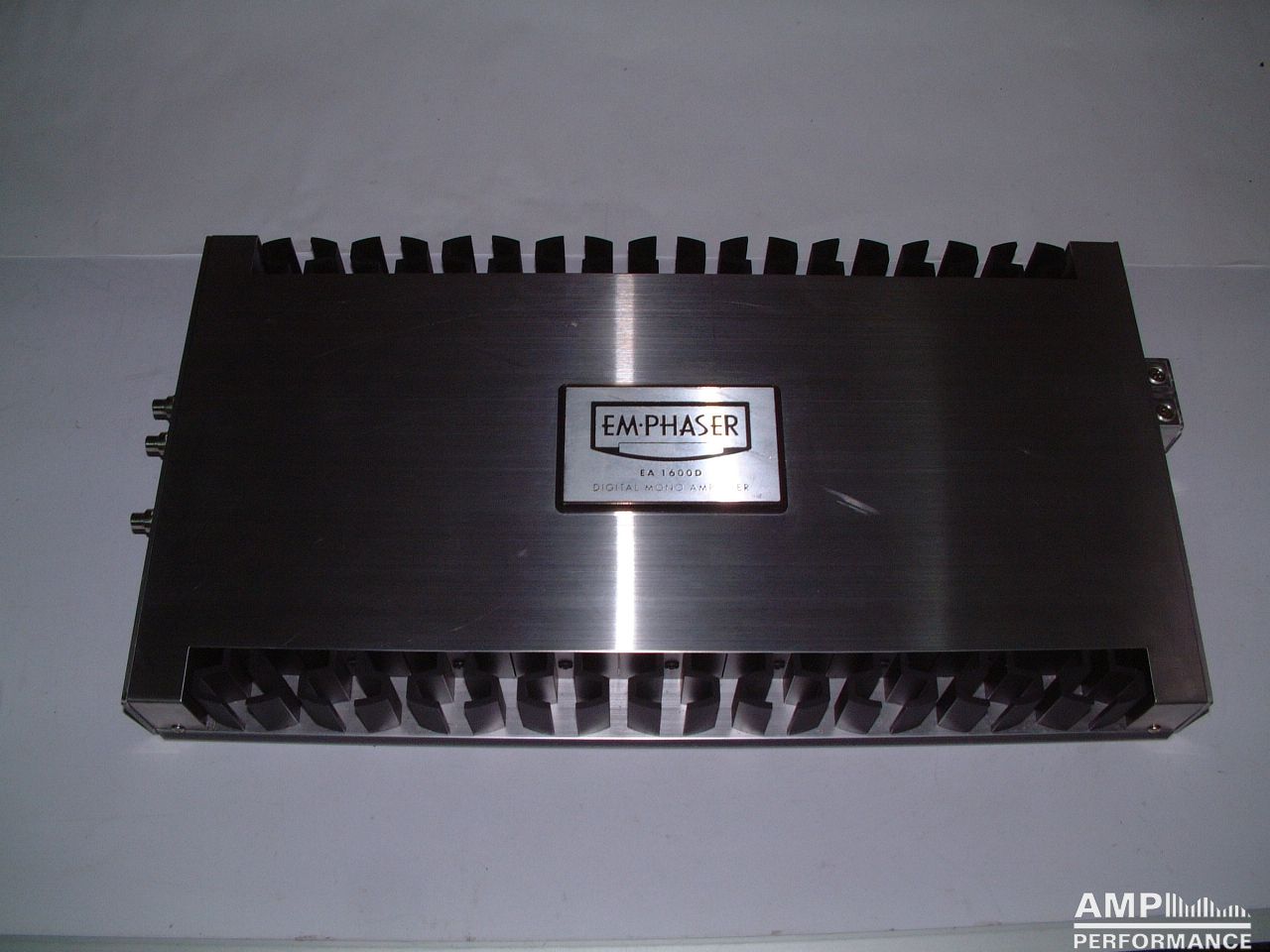

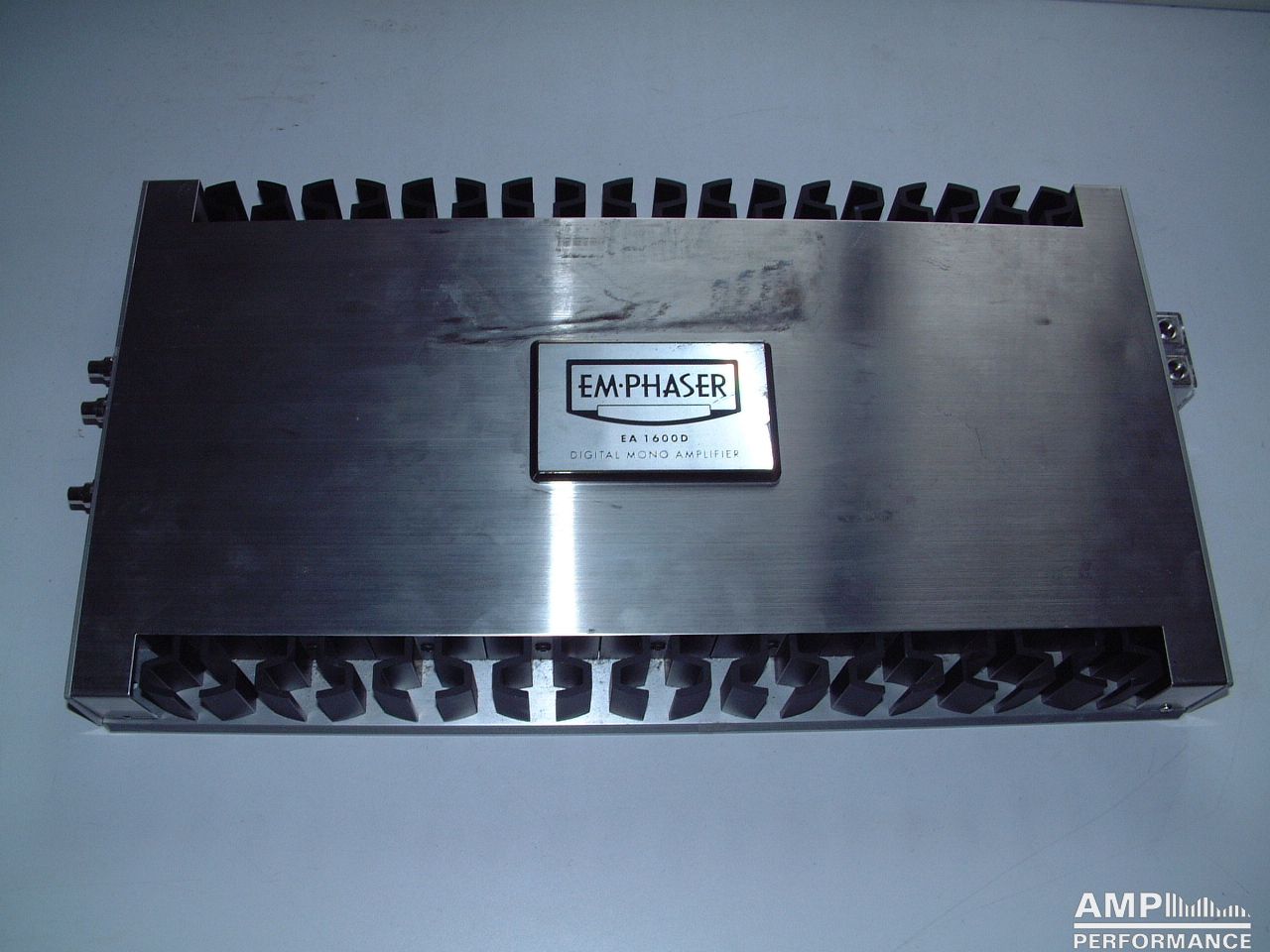

Emphaser EA 1600D

1 × 702 watts, channel 1 at 4 Ohm with 13,4V supply voltage

1 × 1250 watts, channel 1 at 2 Ohm with 13,3V supply voltage

gemessen up to zur Clipping-Grenze with 200Hz because of fixed preset low-pass filter

1-Ohm Betrieb nicht gemessen, wegen zu schwacher Stromversorgung (extern)

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Emphaser EA-1600D

1 × 729 watts, channel 1 at 4 Ohm
Current consumption 63,1A
efficiency 85,6%

1 × 1301 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 115,5A
efficiency 84%

1 × 1718 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 155A
efficiency 82,7%

1 × 2070 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 190A
efficiency 81,9%

2070 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Emphaser EA-1600D

1 × 756 watts, channel 1 at 4 Ohm
Current consumption 66A
efficiency 84,9%

1 × 1352 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 122A
efficiency 82,7%

1 × 1805 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 170A
efficiency 79,8%

1 × 2116 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 205A
efficiency 78,2%

2116 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
