Specialist for Audio-Amplifiers

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

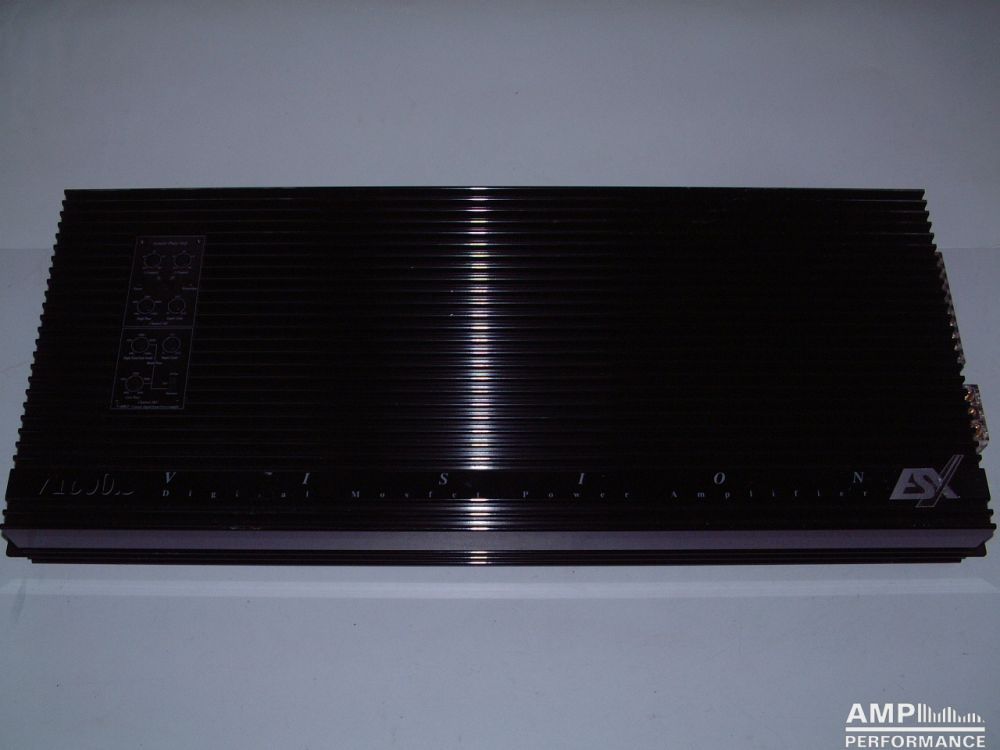

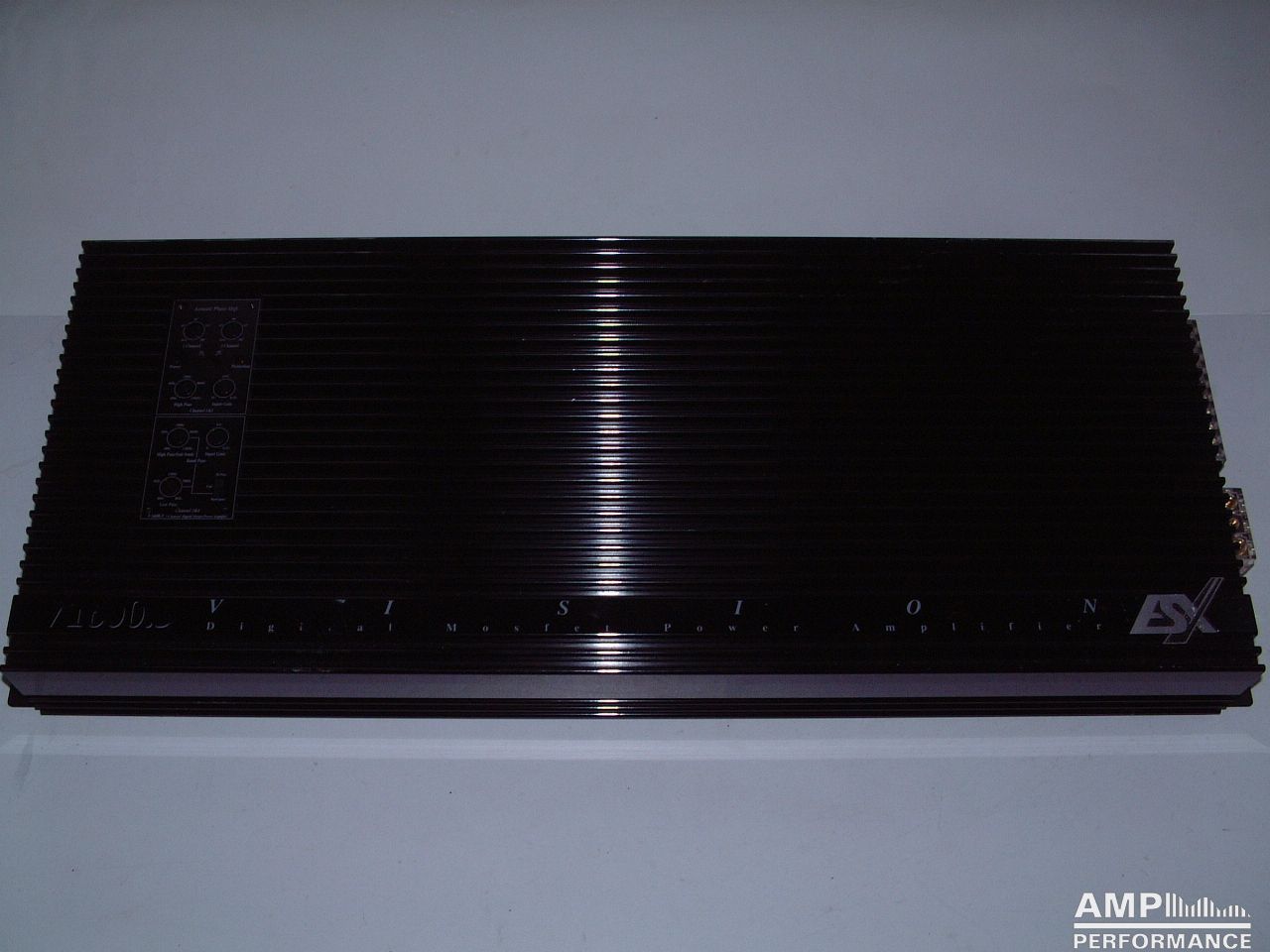

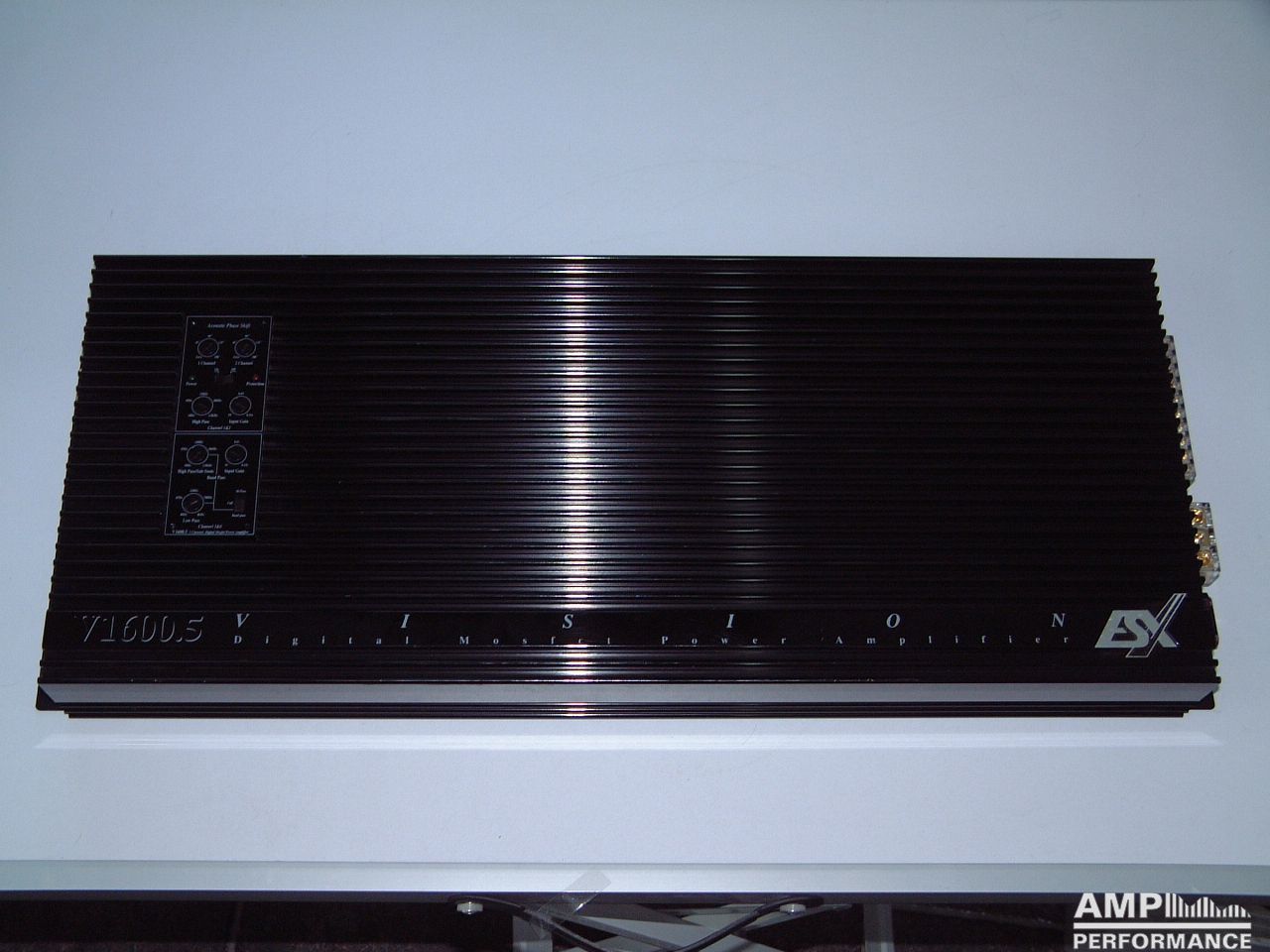

ESX Vision V1600.5

1 × 90 Watts channel 1 at 4 Ohm
2 × 88 Watts channel 1 + 2 at 4 Ohm
4 × 79 Watts channel 1 up to 4 at 4 Ohm

4 × 77 Watts channel 1 up to 4 at 4 Ohm +
1 × 342 Watts channel 5 at 4 Ohm

4 × 75 Watts channel 1 up to 4 at 4 Ohm +
1 × 578 Watts channel 5 at 2 Ohm

Gemessen with 200 Hz because of fixed preset low-pass filter for channel 5

Niedrigere Impedanzen nicht gemessen, wegen zu schwacher Stromversorgung (extern)

provided by Boltar174 from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

ESX Vision V1600.5

1 × 86 watts, channel 1 at 4 Ohm
2 × 84 watts, channel 1 + 2 at 4 Ohm
4 × 77 watts, channel 1 up to 4 at 4 Ohm

4 × 76 watts, channel 1 up to 4 at 4 Ohm +
1 × 361 Watts channel 5 at 4 Ohm with 13,4V supply voltage
Current consumption 68,5A
efficiency 72,3%

4 × 116 watts, channel 1 up to 4 at 2 Ohm +
1 × 592 Watts channel 5 at 2 Ohm with 13,3V supply voltage
Current consumption 120A
efficiency 66%

1056 watts total power

measured with 100 Hz because of fixed preset low-pass filter for channel 5
