Specialist for Audio-Amplifiers

provided by DJ-Lamá aus dem Carhififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

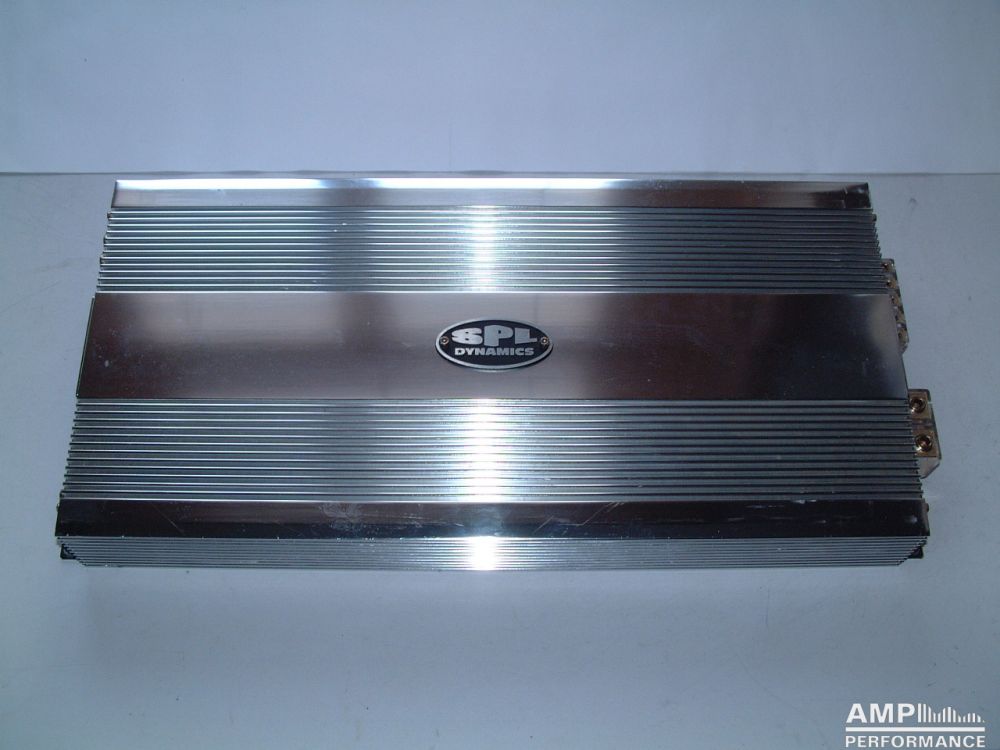

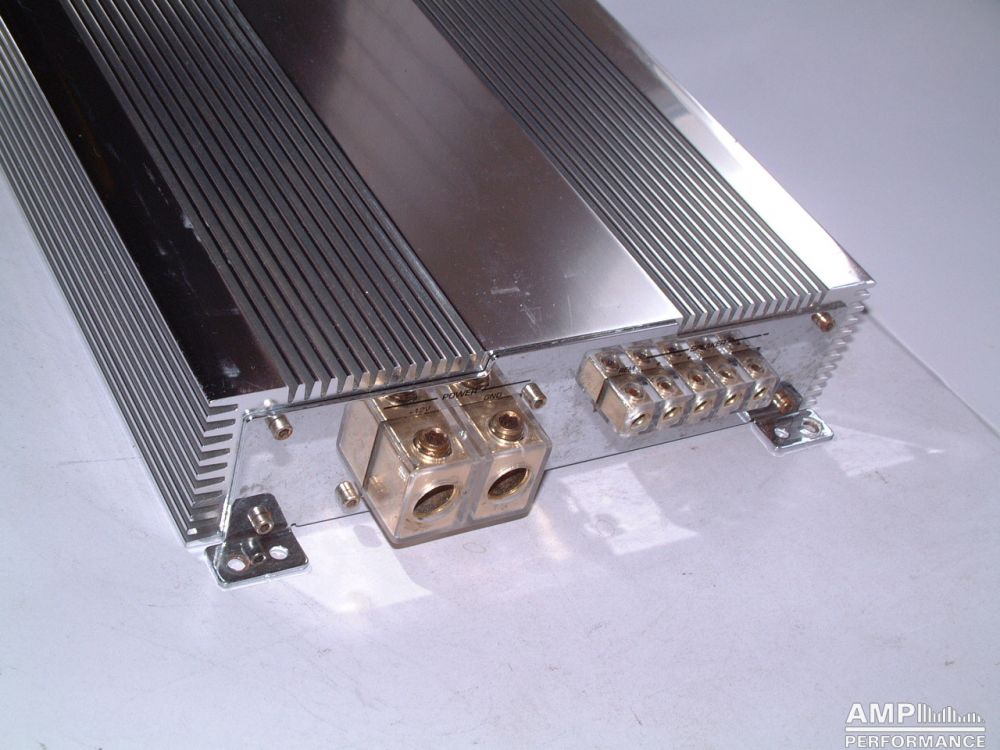

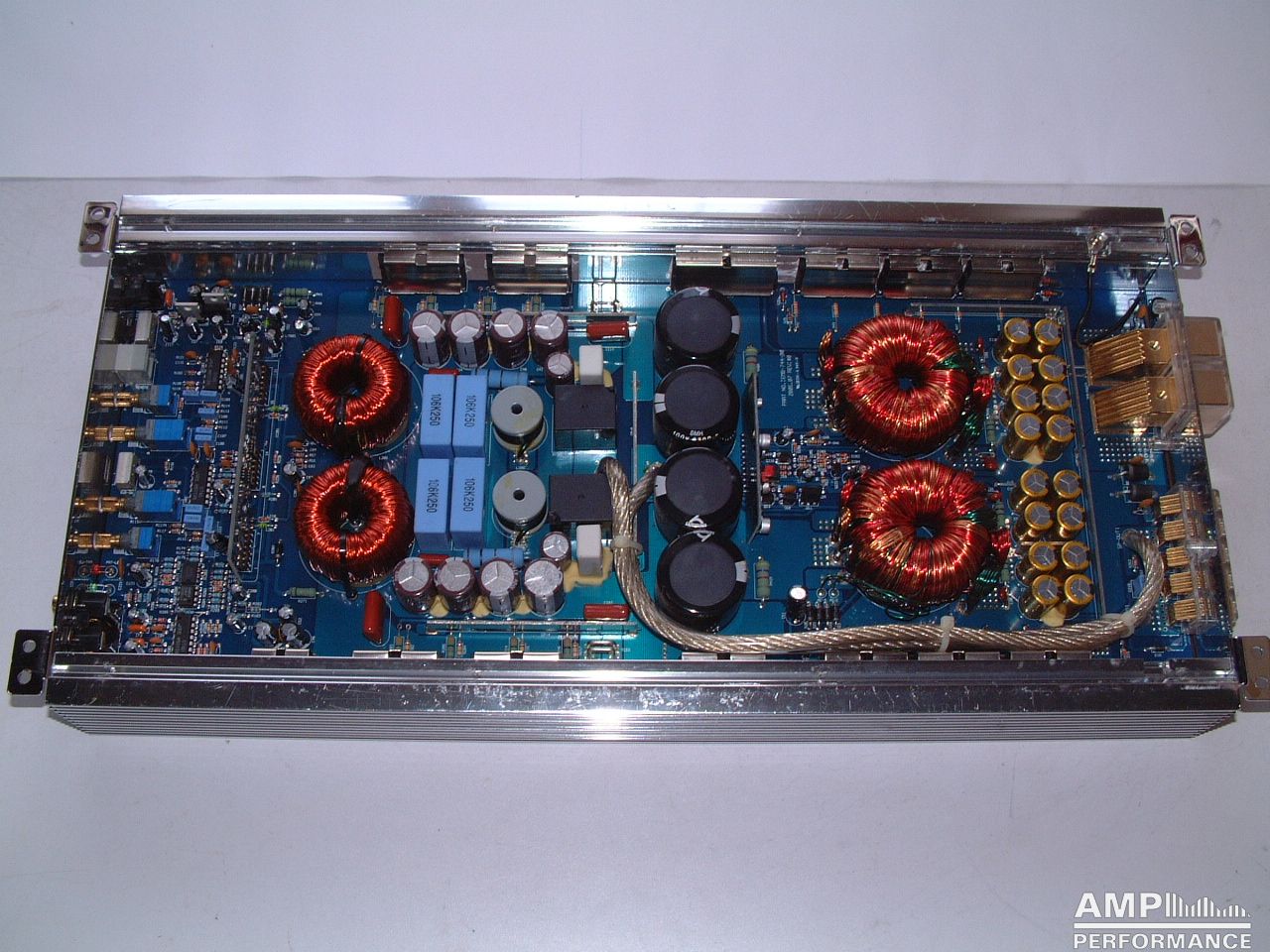

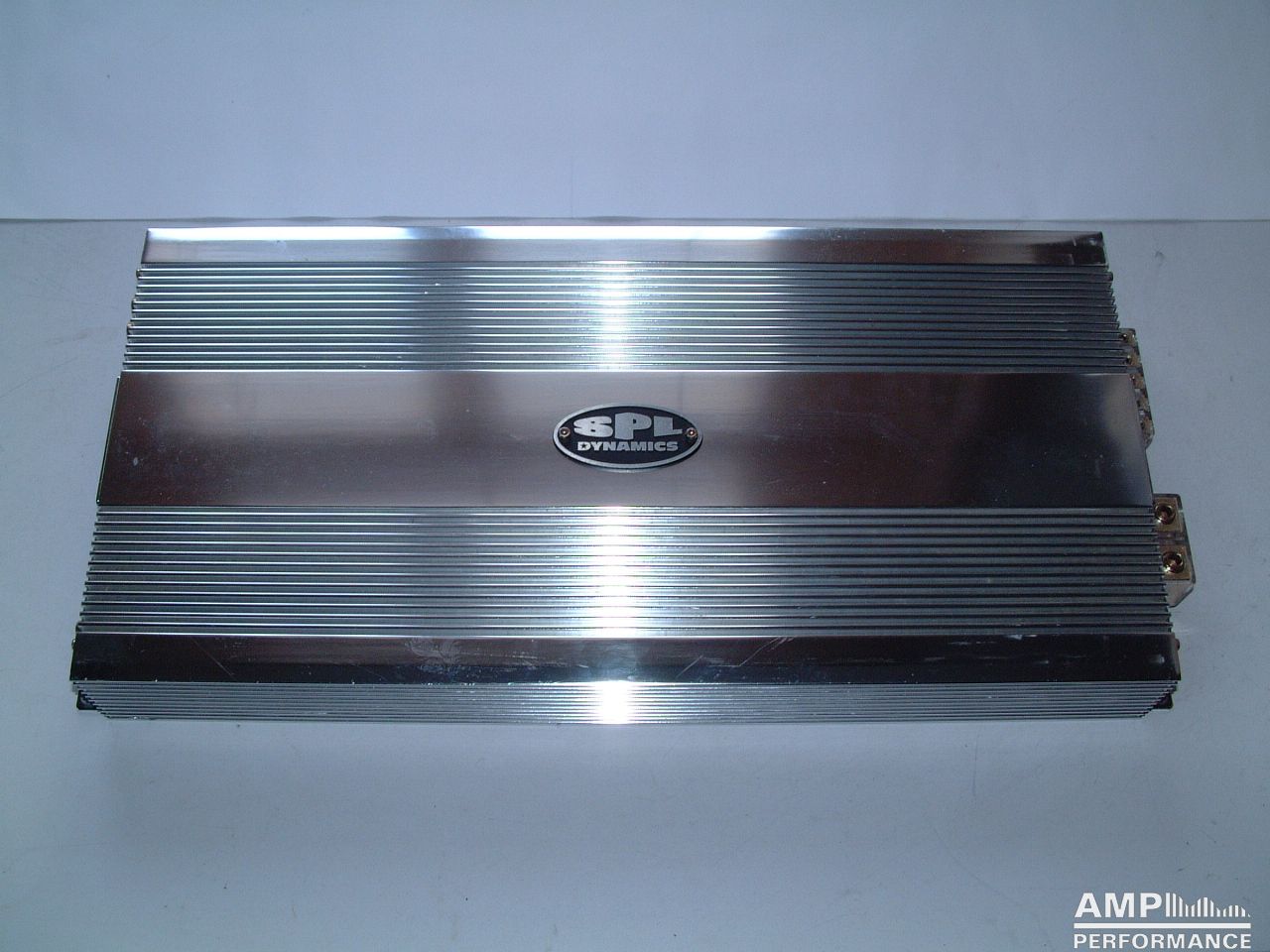

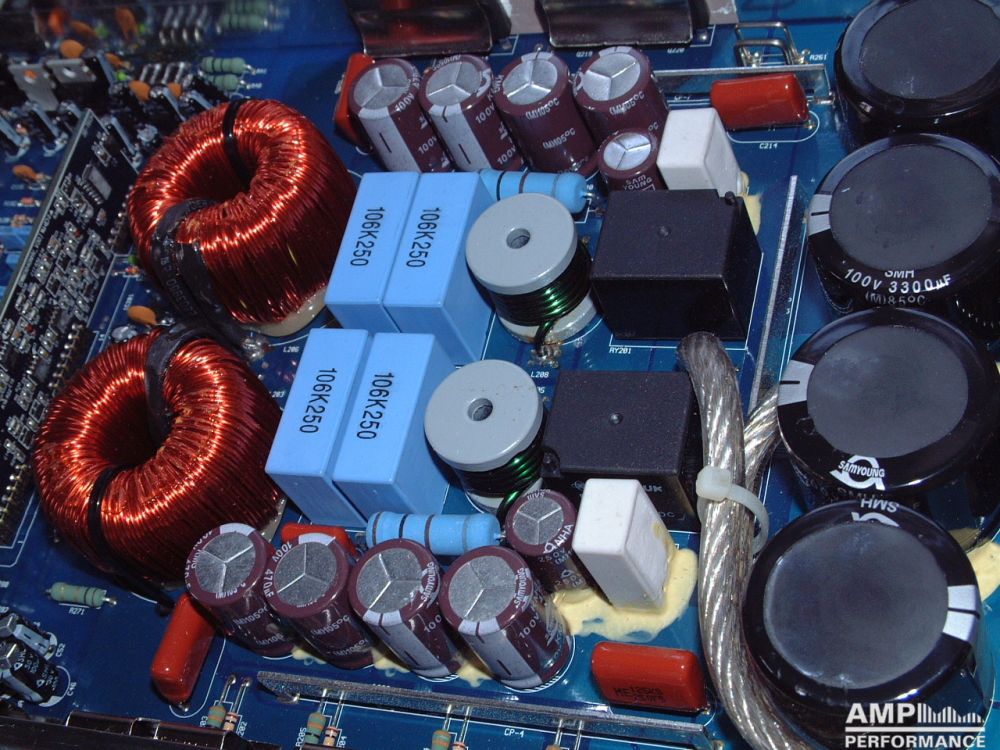

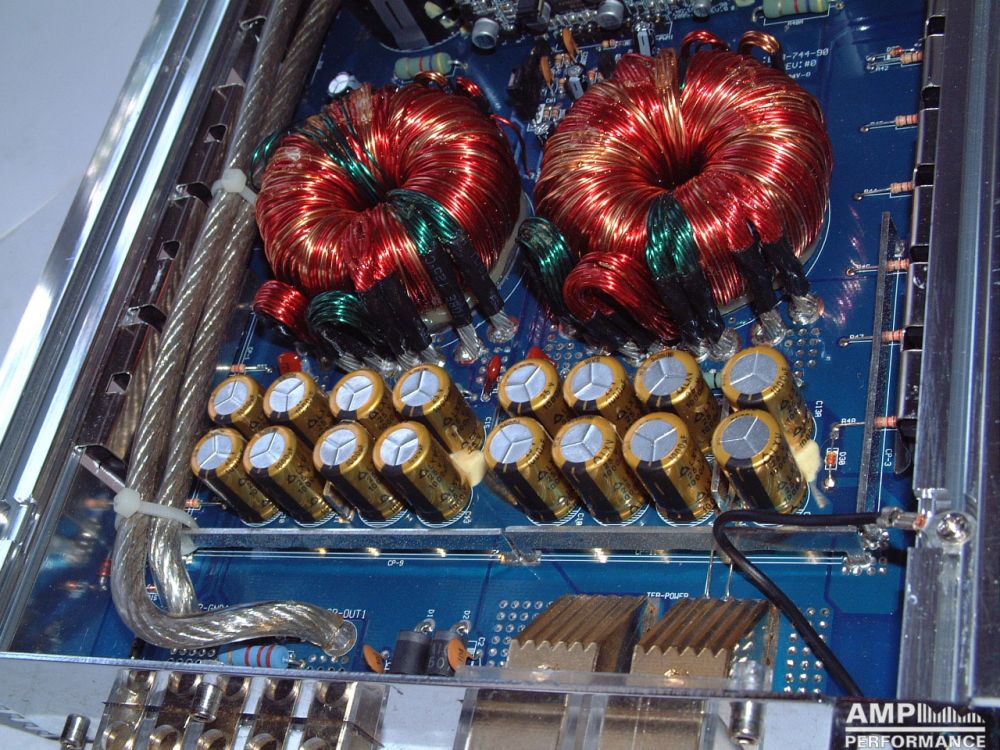

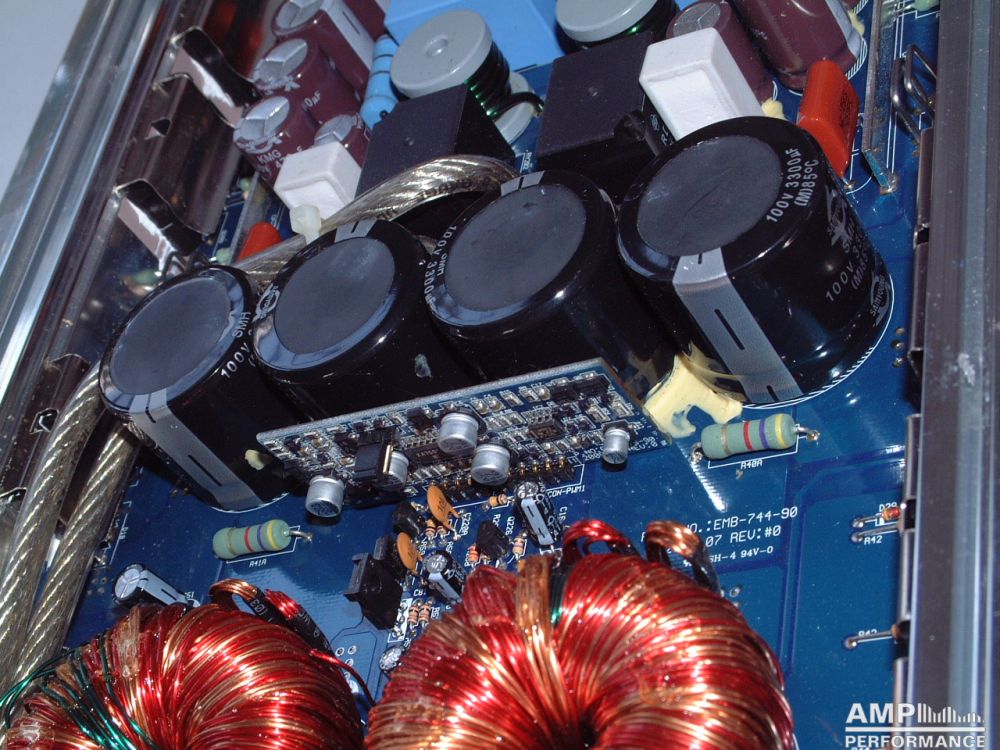

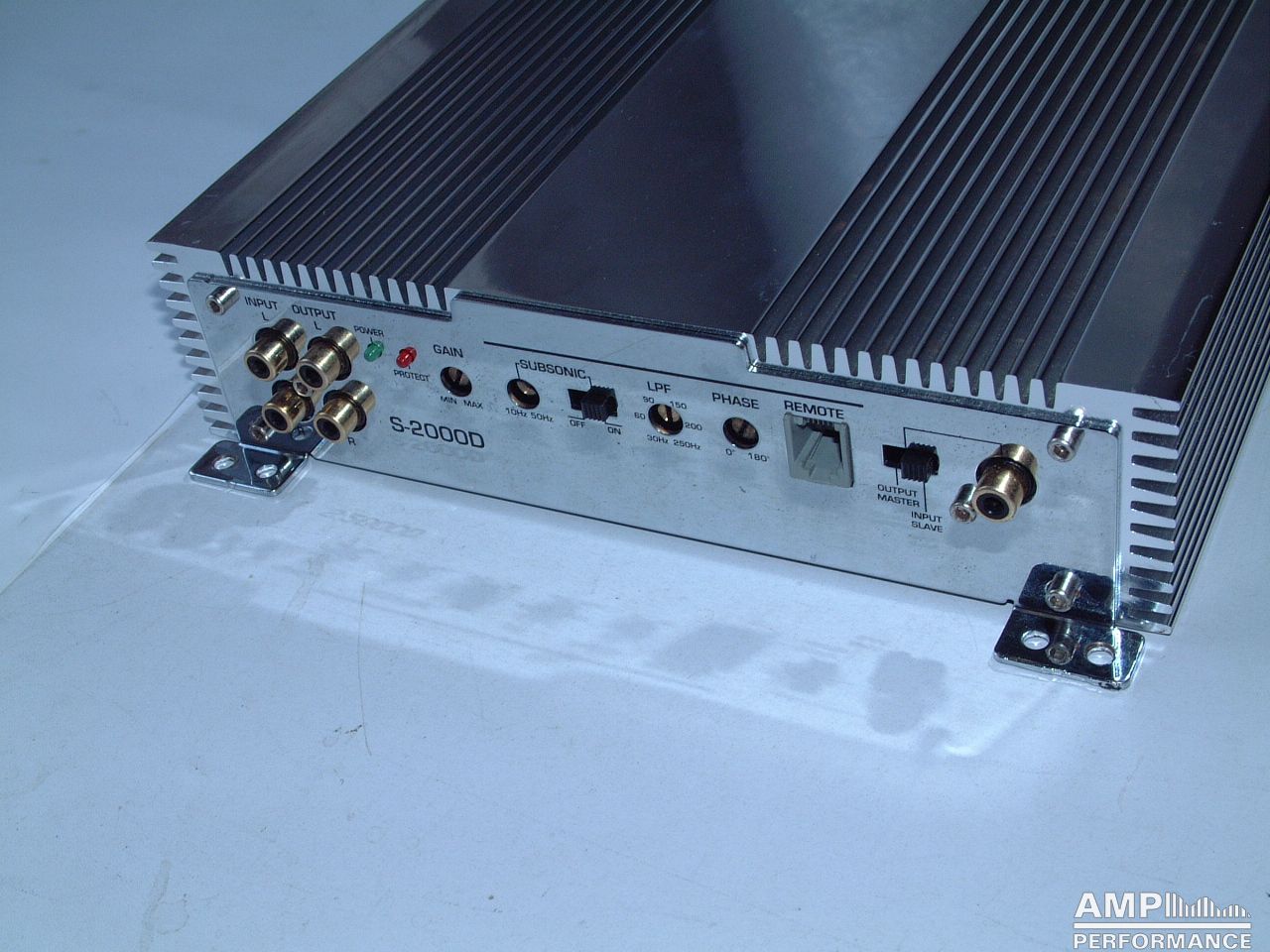

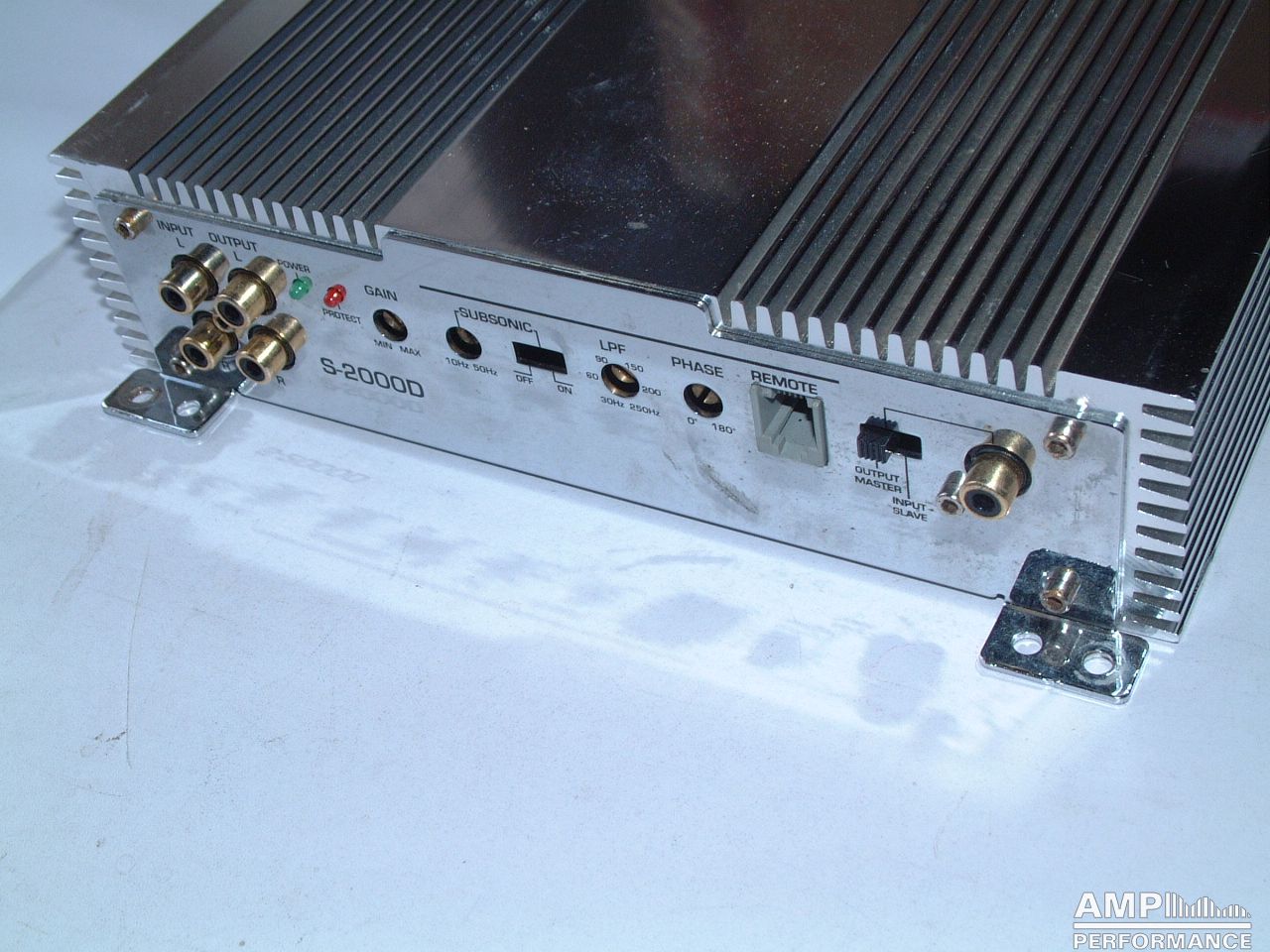

SPL Dynamics S2000D

1 × 697 watts, channel 1 at 4 Ohm
Current consumption 61,5A
efficiency 84%

1 × 1275 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 115A
efficiency 82,8%

1 × 1732 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 161A
efficiency 80,9%

1 × 2070 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 199A
efficiency 78,2%

2070 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

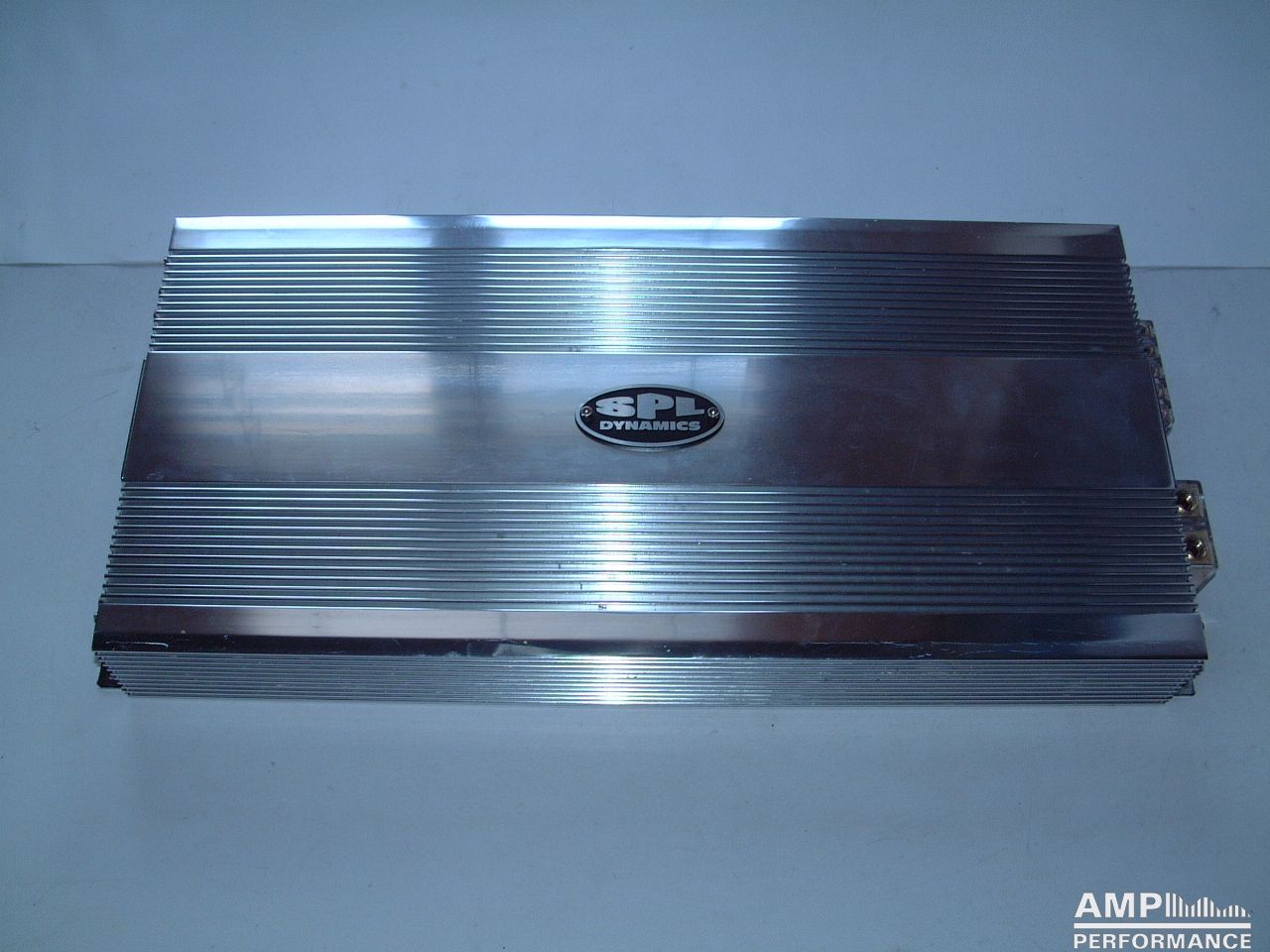

SPL Dynamics S2000D

1 × 689 watts, channel 1 at 4 Ohm
Current consumption 59A
efficiency 86,5%

1 × 1250 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 112A
efficiency 83,3%

1 × 1732 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 164A
efficiency 79,4%

1 × 2025 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 203A
efficiency 75%

2025 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
