Specialist for Audio-Amplifiers

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

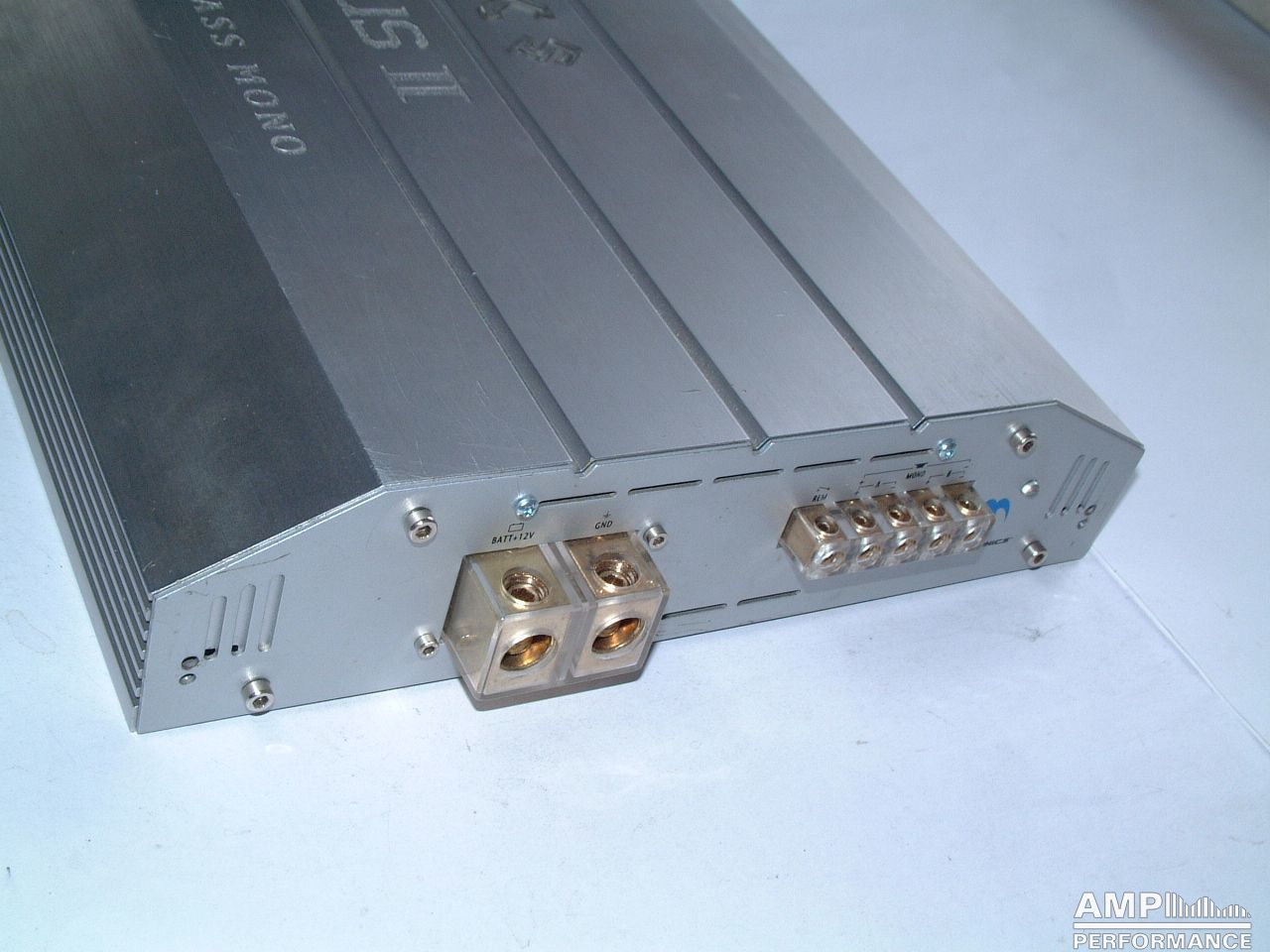

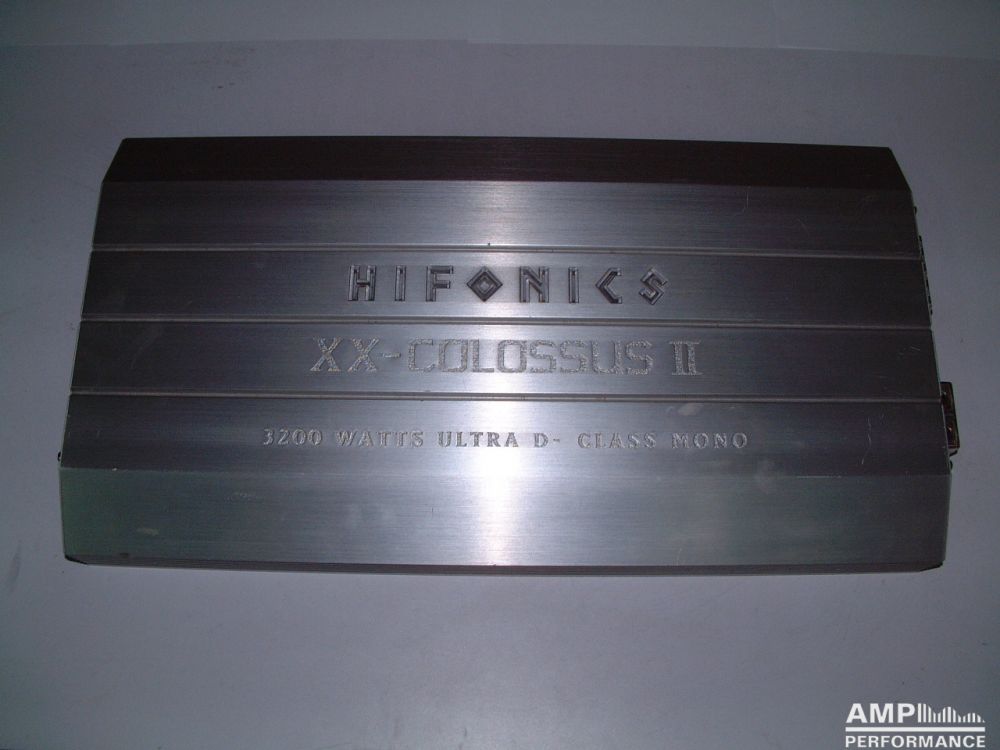

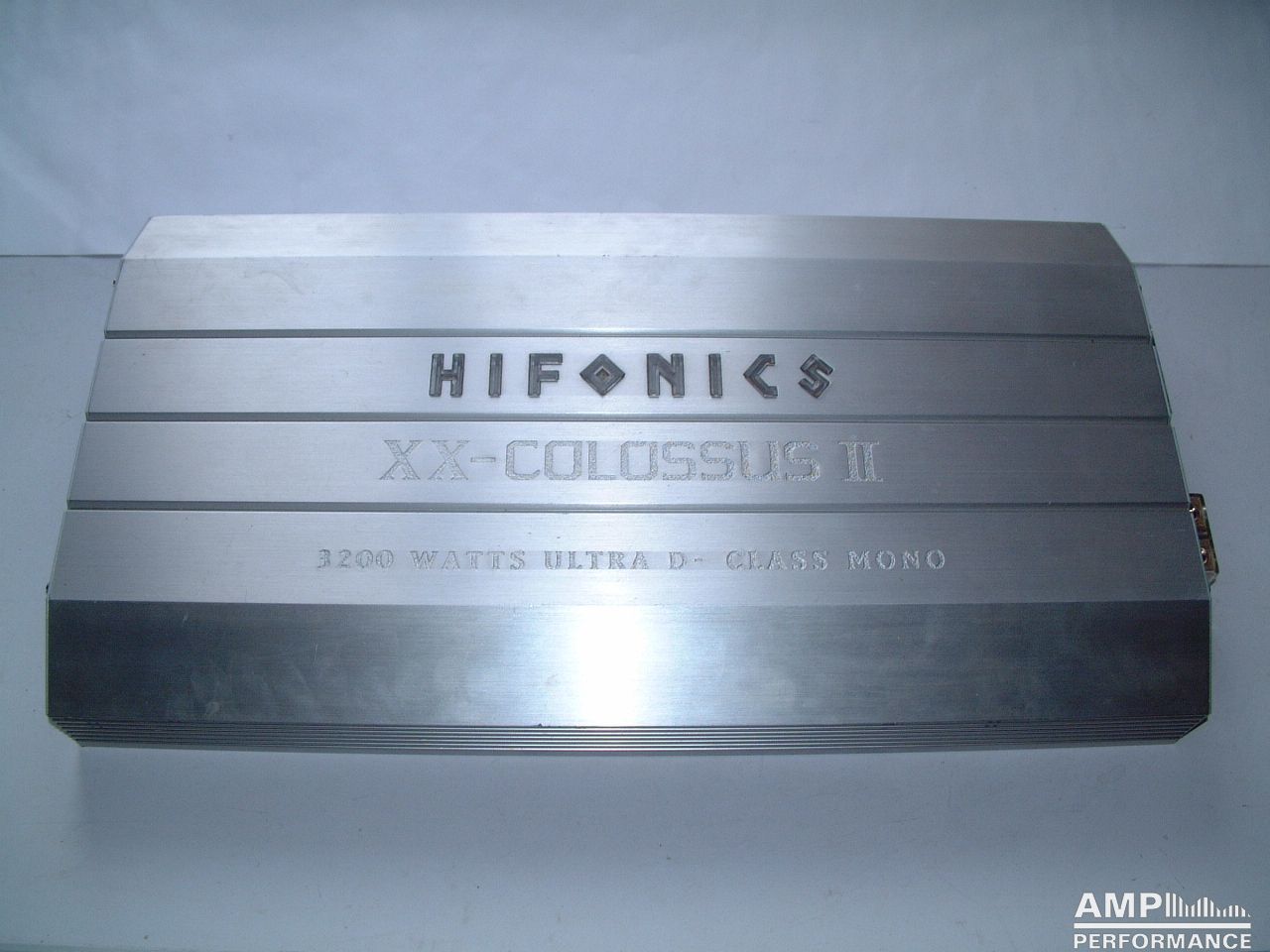

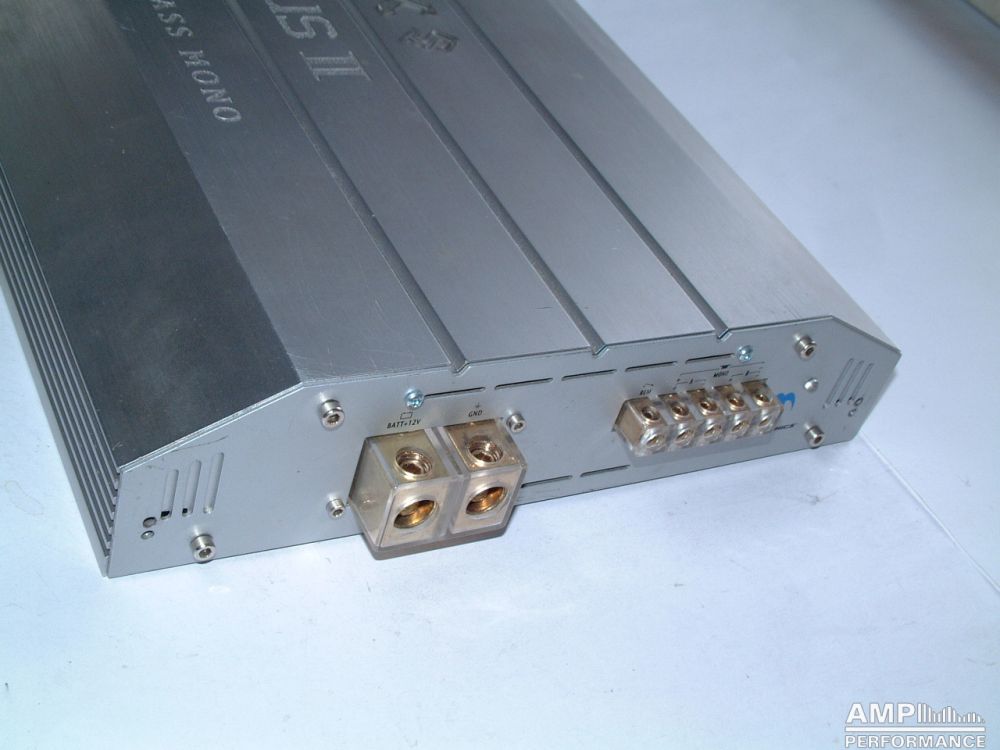

Hifonics XX-Colossus II

1 × 676 watts, channel 1 at 4 Ohm
2 × 625 watts, channel 1 + 2 at 4 Ohm with 13,4V supply voltage
Current consumption 115,6A
efficiency 80,7%

1 × 2116 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 206A
efficiency 77,2%

1 × 3232 watts, channel 1 + 2 bridged at 2 Ohm with 13,1V supply voltage
Current consumption 356A
efficiency 69,3%

3232 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

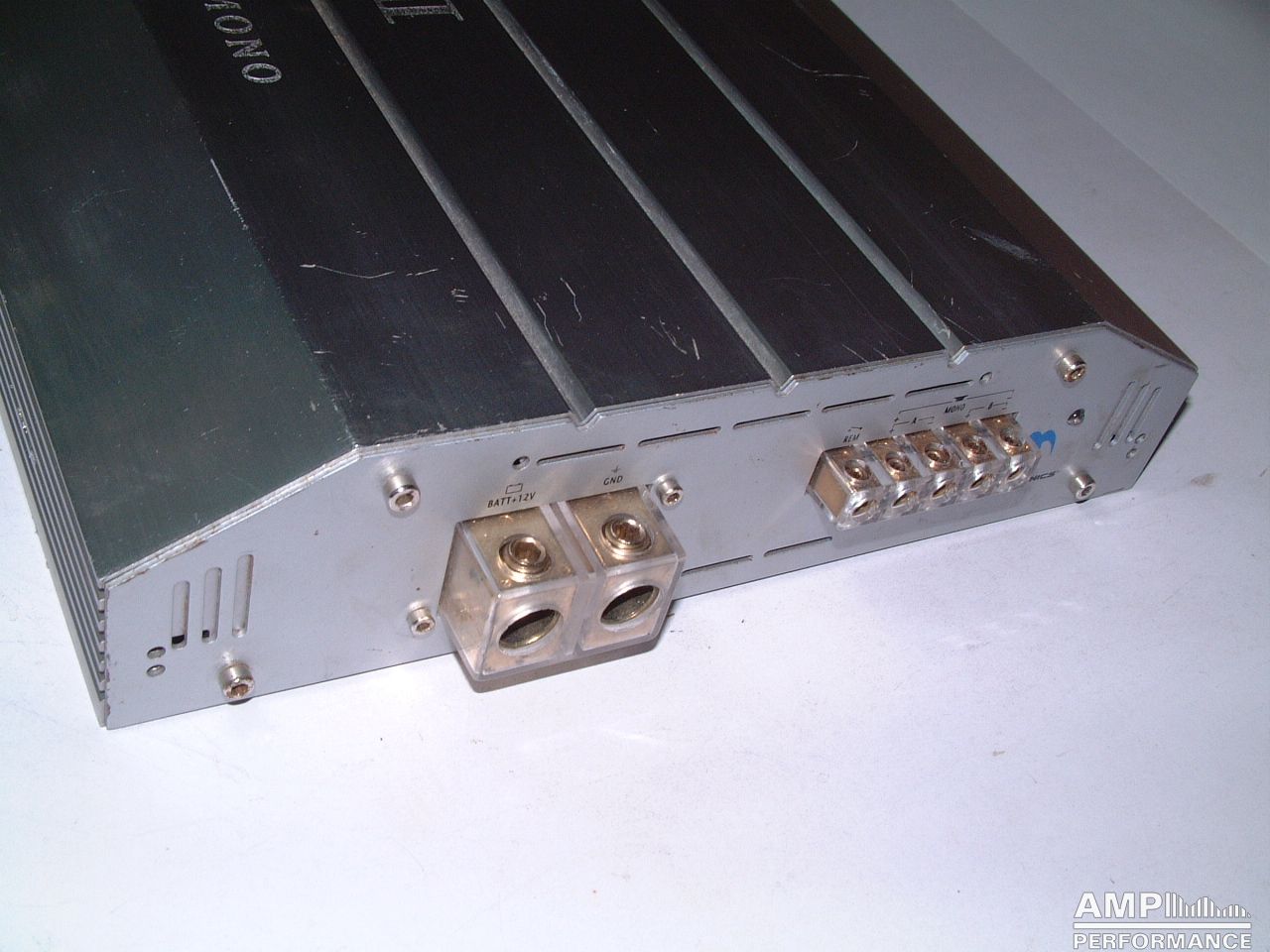

Hifonics XX-Colossus II

1 × 676 watts, channel 1 at 4 Ohm
2 × 625 watts, channel 1 + 2 at 4 Ohm with 13,4V supply voltage
Current consumption 116A
efficiency 80,4%

1 × 2070 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 204A
efficiency 76,3%

1 × 3121 watts, channel 1 + 2 bridged at 2 Ohm with 13,1V supply voltage
Current consumption 345A
efficiency 69,1%

3121 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
