Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

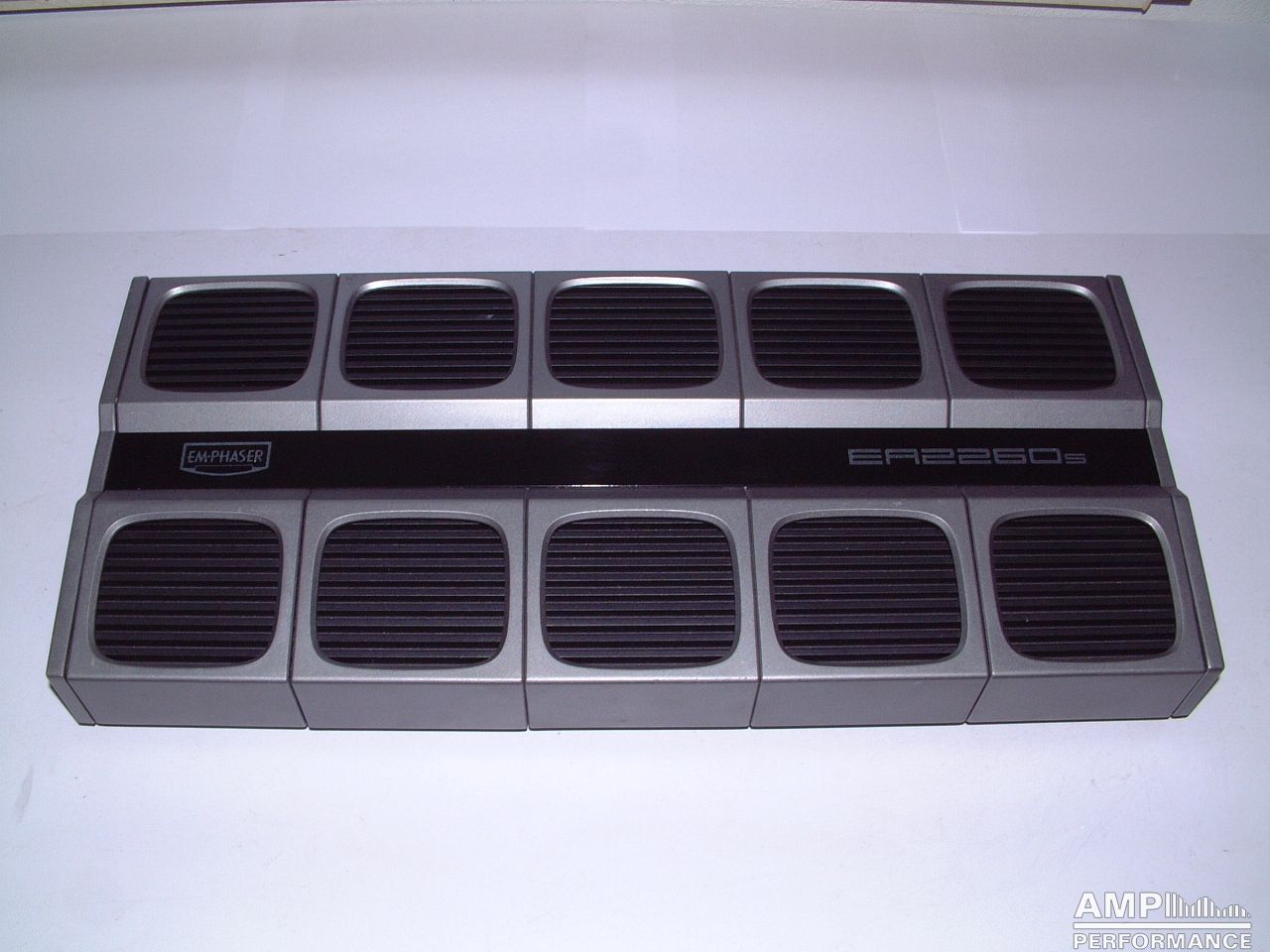

Emphaser EA 2260s

1 × 320 watts, channel 1 at 4 Ohm
2 × 286 watts, channel 1 + 2 at 4 Ohm with 13,4V supply voltage
Current consumption 65,2A
efficiency 65,4%

1 × 900 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 112,8A
efficiency 59,5%

1 × 1210 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 183A
efficiency 49,7%

1210 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Emphaser EA 2260s

1 × 317 watts, channel 1 at 4 Ohm
2 × 286 watts, channel 1 + 2 at 4 Ohm with 13,4V supply voltage
Current consumption 66A
efficiency 64,6%

1 × 912 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 115A
efficiency 59,2%

1 × 1220 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 186A
efficiency 49,3%

1220 watts total power
