Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

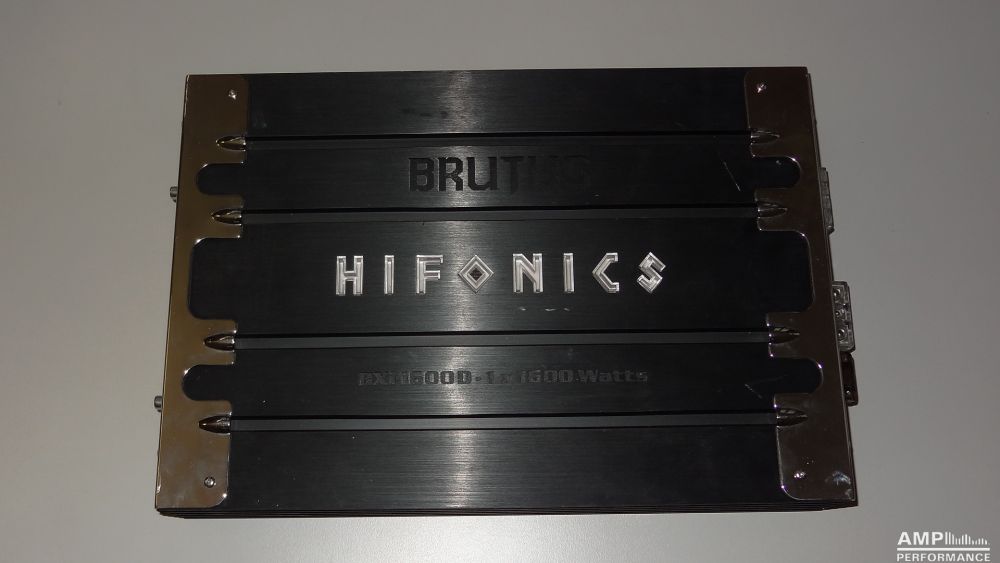

Hifonics Brutus BXi1600D
1 × 506 watts, channel 1 at 4 Ohm
Current consumption 44,9A
efficiency 83,5%
1 × 841 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 81,6A
efficiency 76,9%
1 × 1029 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 106A
efficiency 72,5%
1 × 1183 watts, channel 1 at 1 Ohm with 13,4V supply voltage
Current consumption 129A
efficiency 68,5%
1183 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Hifonics Brutus BXi1600D
1 × 529 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 51A
efficiency 77,4%
1 × 882 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 90,5A
efficiency 72,7%
1 × 1086 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 122A
efficiency 66,9%
1 × 1225 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 147A
efficiency 63,1%
1225 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
